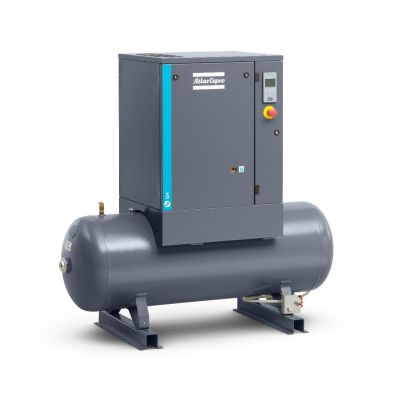

  • Atlas Copco G11-175 AP 208-230/460, 71 Gal, 15 HP Rotary Screw Compressor World Latin America, 71 Gallon Tank (No Air Dryer) | 8153294619

Atlas Copco G11-175 AP 208-230/460, 71 Gal, 15 HP Rotary Screw Compressor World Latin America, 71 Gallon Tank (No Air Dryer) | 8153294619

Atlas Copco G11-175 AP 208-230/460, 71 Gal, 15 HP Rotary Screw Compressor World Latin America, 71 Gallon Tank (No Air Dryer) | 8153294619
Model:
G11-175 AP 208-230/460, 71 Gal
Vendor Item Number:
8153294619
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Request a Quote
Ships Factory Direct
Be the first to review
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

Atlas Copco G11-175 AP 208-230/460, 71 Gal, 15 HP Rotary Screw Compressor World Latin America, 71 Gallon Tank (No Air Dryer) | 8153294619



TECH DATA

  • Product Specification

    • Compressor Style
      Lubricated Rotary Screw
    • Controls
      Load/No Load
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      15
    • Pressure Rating
      175 PSI
    • Pump Drive
      Belt Drive
    • Rated Duty Cycle
      100%

  • Overview & Technical Details

    • Certifications
      ASME
    • Electrical Starting
      Across the line Starting
    • Fluid Type
      Synthetic
    • Power Source/Type
      Electric
    • Sound Level dBA
      67 dB(A)

  • Additional Features

    • Air Dryer Included
      No (Optional)

  • Connection

    • Connection NPT
      1/2"

  • Dimensions & Weight

    • Height (inch)
      53"
    • Length (inch)
      61"
    • Width (inch)
      26"
    • Weight (lbs)
      695.000000

  • Motor Data

    • Motor Type
      TEFC

  • Power Requirements

    • 208/3/60
      30.8 Full Load Running Amps
    • 230/240/3/60
      28 Full Load Running Amps
    • 460/480/3/60
      14 Full Load Running Amps
    • Standard Voltages
      208-230-460/3/60

  • Tank Size

    • Air Tank Included
      Included
    • Air Tank Size
      71 Gallon

  • Warranty

    • Standard Warranty
      1 Year Parts & Labor
