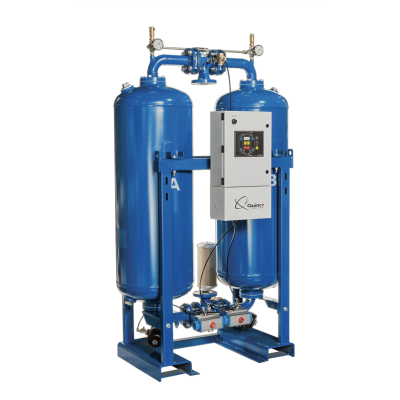

Quincy Compressor QHD-635, 635 CFM Heatless Desiccant Air Dryer, -40F Dew Point, 115/1/60, 2" NPT
DESCRIPTION
TECH DATA
PRODUCT REVIEWS
Product Q & A
DESCRIPTION
Quincy Compressor QHD-635, 635 CFM Heatless Desiccant Air Dryer, -40F Dew Point, 115/1/60, 2" NPT
Quick Description The QHD is an industrial duty heatless purge desiccant air dryer that removes moisture from compressed air through a process known as Pressure Swing Adsorption. Saturated compressed air is directed over a bed of desiccant (Q Sorb) an enhanced formula of activated alumina. As the saturated compressed air flows up through the desiccant bed its moisture adheres to the surface of the desiccant and is removed through an exhaust muffler during the regenerating cycle. Heatless dryers use 14-18% of the compressed air flow for regeneration. Quincy Heatless Purge Regenerative dryers are the least costly desiccant dryers to purchase but use the most purge. They typically represent the best value in systems under 600 cfm.
NEMA4 Standard
Product Description:
The QHD adsorption dryer is a twin tower heatless reactivated desiccant dryer which removes moisture from compressed air by adsorption. The QHD dryer is completely wired and equipped with all interconnecting pipe work. All equipment as listed is mounted on a single common frame, completely wired and ready to operate.
Key Features & Benefits:
- Twin tower heatless dryer with ASME approved vessels and CSA/UL - Activated alumina desiccant for -40F PDP and molecular sieve for -100F and high inlet temperatures - QMF & QPF inlet filters and a QCF outlet filter are provided as standard and mounted - Airlogic 2 Controller - Units supplied with purge nozzle kit for inlet pressure adjustments - NEMA 4 control panel.
