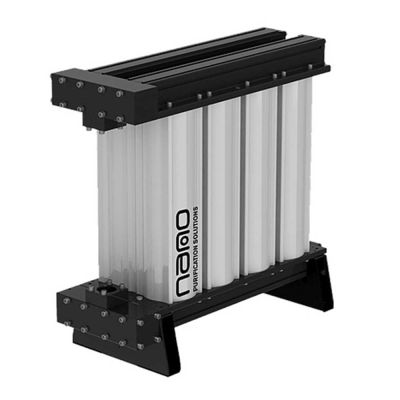

Nano Purification NVR 1100, 1100 SCFM Oil Vapor Removal System, 2-1/2" NPT

Nano Purification NVR 1100, 1100 SCFM Oil Vapor Removal System, 2-1/2" NPT

The Nano NVR oil vapor removal systems use proven activated carbon technology to efficiency remove hydrocarbons and odor from the compressed air supply to provide ISO 8573 class 1 air.

maximum working pressure 232 psig / 218 psig

recommended operating temp range 36 to 95°F

maximum operating temperature 122o F

estimated cartridge life 6000 hrs (3)

maximum particulate size 0.01 micron

maximum pressure dew point -40°F

maximum oil content 0.05 mg/m

maximum outlet air oil content (@95o F) 0.003 mg/m3 (ppm)

(1) at inlet conditions of 100 psig and 95°F , and 95°F ambient temperature. For all other operating conditions refer to the correction factors above

(2) includes purification cartridges (including integral inlet diffusers and outlet particulate filters) and all o-rings

(3) provided as an estimate only. Cartridges must be replaced as required to maintain adequate air quality in accordance with all applicable codes and regulations

(4) if the air doesn’t meet these conditions, contact info@compressorworld.com to confirm the additional treatment required

(5) to be used as a rough guide only. All applications should be confirmed
