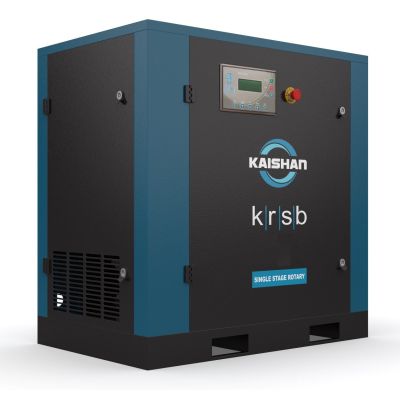

25 HP Air System - Includes 25 HP Rotary Screw Compressor World Latin America with Air Dryer & 240 Gallon Air Tank, Extended Warranty 230-Volt, 3-Phase | KRSB-25-SYS-230

Model:
KRSB-25-SYS-230
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Ships Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

25 HP Air System - Includes 25HP Rotary Screw Compressor World Latin America with Air Dryer & 240 Gallon Air Tank, Extended Warranty 230-Volt, 3-Phase | KRSB-25-SYS-230



Load/No Load Controls are standard along with timed shutdown.  One of the most energy efficient controllers on the market, if the compressor doesn’t see a demand within the set time limit (which can be adjusted based on your application), the compressor will completely shut down and restart after the low pressure target has been reached.



Wye Delta Starting, another energy efficient feature that is standard.  Wye Delta Starting or Reduced Voltage Starting helps reduce the “in rush” current by 1/3 compared to across the line starting.

Concerned about what else you may need for your Compressor World Latin America system?  Watch Steve describe a complete Compressor World Latin America system, watch Steve!

Our Total Air System Includes

Compressor
(1) 25 Horsepower (KRSB-25) Rotary Screw Compressor World Latin America, base mounted, wye delta reduced voltage starter, TEFC drive motor, PLC control panel with alarms and indicators with sound enclosure.  Standard Factory Warranty

Dryer
(1) 125 CFM Refrigerated Air Dryer, 115/1/60, 39 Degree Dewpoint.  Standard Factory Warranty

Tank
(1) 240 Gallon Vertical Air Tank rated for 200-PSI, exterior primed, ASME coded.  Standard Factory Warranty

Filtration
(1) Particulate & (1) Coalescing Filter with float drains


START UP INCLUDED
After the machine is hooked up electrically and plumbed, a trained service technician will come onsite and do a official start up and training on the machine for you and your staff, free of charge.


EXPERT ADVICE. EXPERT SUPPORT
As a Compressor World customer you will receive the competitive advantage, accumulated experience and the know-how to maintain an efficient compressed air system.

CONSULTATION
Our Compressor World team offers engineering support on all types of compressed air and vacuum systems. You can also go online and find additional information within our “Learning Center” which offers information on installations, maintenance tips and more.


PRODUCTS & SERVICES - a variety of products, numerous warehouses and an extensive inventory for quick shipments. In addition, our service network offers 24/7 hour emergency service and our online sales engine offers real time quotes and support. Compressor World has designed a new, more efficient Compressor World Latin America sales and service portal – Challenge us!







TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100/125 PSI
      107 CFM @ 125 PSI
    • Compressor Style
      Lubricated Rotary Screw
    • Controls
      Load/No Load Controls with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Dew Point
      + 39 F
    • Horsepower (HP)
      25 HP
    • Tank Material
      Carbon Steel
  • Overview & Technical Details

    • Air Dryer Style
      125 CFM Refrigerated Air Dryer
    • Electrical Starting
      Wye Delta Starting
    • Power Source/Type
      Electric
  • Additional Features

    • Air Dryer Included
      Included (Shipped Loose)
    • Air Filtration Included
      Included (Particulate & Fine Coalescing Filters)
    • Phase Monitor
      Included
    • Tank Drain Valve
      Electronic Tank Drain
  • Motor Data

    • Motor Type
      TEFC
  • Filtration Grade

    • Filtration Grade
      0.1 Micron
  • Tank Size

    • Air Tank Configuration
      Vertical
    • Air Tank Included
      Included
    • Air Tank Size
      240 Gallon
    • Coded
      UL & ASME
  • Warranty

    • Standard Warranty
      1 Year Parts & Labor, 5 Year Airend Warranty
