Ingersoll Rand RS30i-TAS, 40 HP Compressor World Latin America Rotary Screw with Air Dryer, 196 CFM, 208/230/460-Volt, 3-Phase

Model:
RS30i-TAS
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Ships Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

RS30i-TAS, Ingersoll Rand 40 HP Compressor World Latin America Rotary Screw with Air Dryer, 196 CFM, 3-Phase

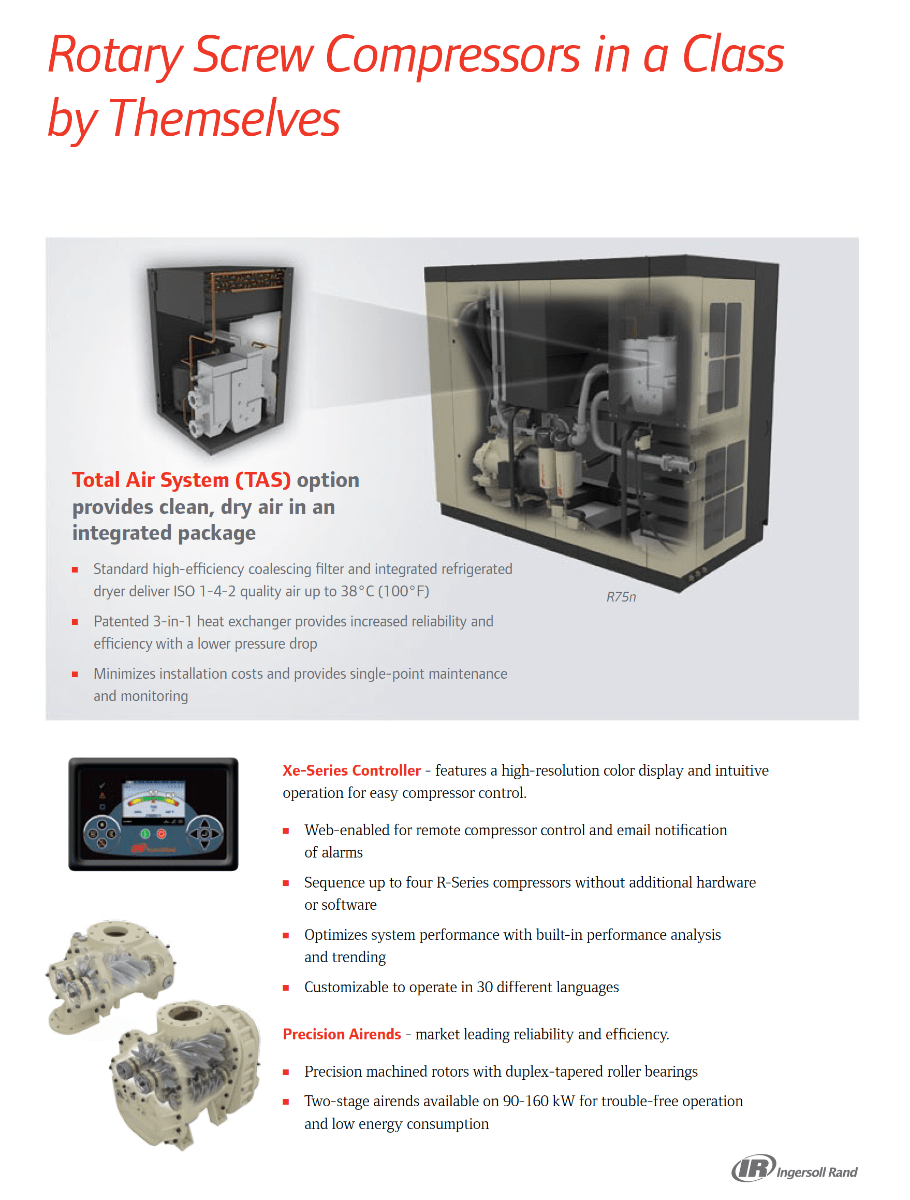

Total Air System (TAS) package provides clean, dry air in an integrated package



FEATURES

  • Improved Efficiency and Air Flow: Airend features optimized rotor profile that delivers up to 16% improved efficiency and 21% greater airflow capacity

  • Remote Intelligent Control: Xe-Series controller delivers increased control functionality through an intuitive user interface and remote access with any common, current web browser

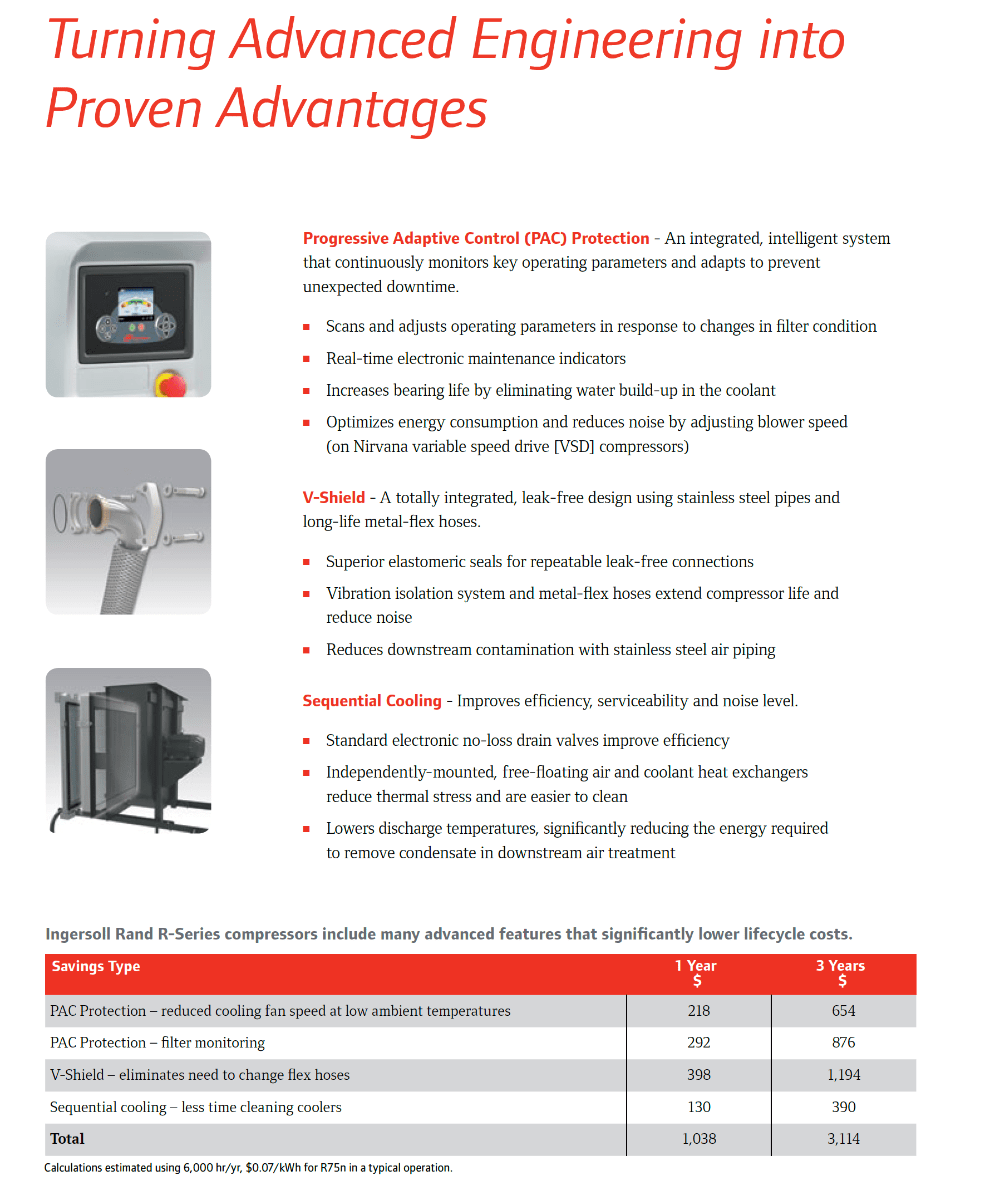

  • Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals

  • Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime

  • Decrease Energy Use: NEMA Premium® efficiency motor delivers significant energy savings, and the optional variable speed drive (VSD) further decreases energy demand

  • The Total Air System (TAS): Offers clean, dry air in a single package that minimizes installation costs, space and features improved ISO air quality





TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      196 CFM @ 103 PSI
    • Capacity (CFM) @ 118 PSI
      184 CFM @ 118 PSI
    • Capacity (CFM) @ 138 PSI
      168 CFM @ 138 PSI
    • Capacity (CFM) @ 193 PSI
      132 CFM @ 193 PSI
    • Compressor Style
      Lubricated Rotary Screw
    • Controls
      Load/No Load Controls with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      40 HP
    • Min Ambient Temperature
      35 F
    • Rated Duty Cycle
      100%
  • Overview & Technical Details

    • Air Dryer Style
      Refrigerated Air Dryer
    • Certifications
      ASME, UL
    • Fluid Type
      Factory Fluid
    • Max Ambient Temperature
      115 F
    • Power Source/Type
      Electric
  • Additional Features

    • After Cooler
      Included
    • Air Dryer Included
      Included
    • Air Filtration Included
      Included
  • Connection

    • Connection NPT
      1.5"
  • Motor Data

    • Motor Type
      TEFC
  • Power Requirements

    • 208/3/60
      Optional
    • 230/240/3/60
      Optional
    • 460/480/3/60
      Optional
    • Standard Voltages
      208-230/460/575 Volt, 3-Phase
  • Warranty

    • Standard Warranty
      1 Year Parts & Labor
