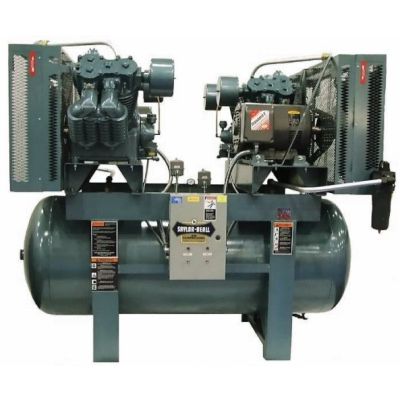

Saylor-Beall 30 HP Pressure Lubricated Duplex Compressor World Latin America Two Stage 200 Gallon Tank | 460-Volt 3-Phase | X-PL-93020-460-3
Saylor Beall industrial two stage industrial Compressor World Latin America are built with an electric motor. All of our recipricating Compressor World Latin America are proudly USA made and rank among the best Compressor World Latin America in the industry.
PUMP FEATURES - CYCLINDER HEAD, Finned Cast Iron, Valves Servicable from Top - CYLINDERS; Finned Cast Iron - Precision Honed - INTERCOOLERS; Sturdy Finned Cast Iron - CRANKSHAFT; Cast Meehantite, Ground; Polished Journals - CONNECTING RODS; With Replaceable Precision Type Automotive Inserts, Replaceable Needle Bearings (Wrist Pin) - PISTONS; L.P. Auminu, H.P., Cast Iron - PISTON RINGS; Three Compression, One Oil - CENTRIFUGAL UNLOADER; No Load Start
100% machined, assembled, and tested for quality in our plant in St. Johns, Michigan.
We take pride in manufacturing an American made product.
SAYLOR-BEALL Manufacturing Company warrants its compressors and parts when properly installed, lubricated and maintained as recommended and in accordance with good industry practice to be free from defects in material and
workmanship under normal use and service. The responsibility of the Company under this warranty is limited to repair or replacement at the Company’s factory, any compressor or part thereof, which shall, within one year after date of
shipment to the original purchaser, be returned to the Company and which, upon examination, shall be found defective to the satisfaction of the Company. This warranty shall not apply to compressors or parts which have been
subjected to misapplication, misuse, negligence or accident, to compressors or parts which have been repaired or tampered with outside the Company’s factory when in the judgement of the Company, it appears that the reliability or
stability of the compressor or part has been effected. Ordinary maintenance, such as adjustment and cleaning of equipment or components is the responsibility of the owner. All transportation and shipping charges shall be paid by
purchaser. This warranty does not apply to electric motors or gasoline engines. These are covered by the Original Manufacturer’s Warranty and should be returned by the purchaser to their authorized station for service. This warranty
is expressly in lieu of all other warranties (except of title) expressed or implied and of any other obligations or liability on the part of the Company. There are no warranties of merchantability or of fitness for a particular purpose.
DATOS TÉCNICOS
Product Specification
Capacity (CFM) @ 150/175 PSI
202.2 CFM @ 175 PSI
Controls
Start/Stop
Pressure Rating
175 PSI
Pump Type
PL-9000 Pump
RPM
830
Additional Features
Tank Drain Valve
Manual Drain
Power Requirements
Standard Voltages
230/3/60, 460/3/60
Tank Size
Air Tank Configuration
Horizontal
Air Tank Size
200 Gallon
