Parker CAT750, 750 SCFM, 2" NPT, torre de carbón activado para eliminación de vapor de aceite, hasta 0,003 mg/m3

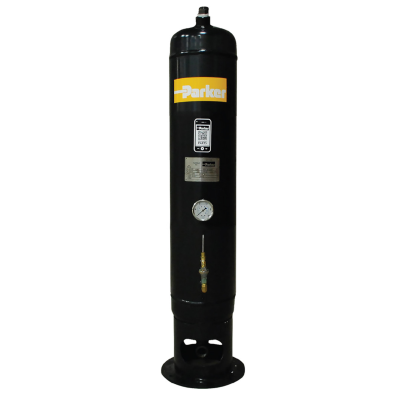

Parker CAT750, 750 SCFM, 2" NPT, Activated Carbon Tower for Oil Vapor Removal, Down to 0.003 mg/m3

Carbon towers purify pre-dried industrial compressed air by removing residual oil vapors and odors from the compressed air system. These low maintenance units are constructed in a compact manner and designed to be free-standing units. They are supplied with a pressure gauge and oil indicator.

Pre-dried compressed air flows from top to bottom through a single vessel containing high-quality activated carbon. Any remaining oil-aerosols and oil vapors, including odors and tastes, are removed by the active surface area of the highly-porous activated carbon to produce high quality, clean compressed air.

Finally, the treated compressed air exits an after-filter rated for solid particulates removal into the downstream compressed air network. The use of an oil-indicator tube supplied as standard allows quality checks to be carried out periodically for verifying air purification. The lifetime of the activated carbon filling can vary and is dependent on the contamination type, quantity, and the relative humidity of the supplied compressed air. However, the adsorber bed can last up to an excess of 8,000 hours when properly maintained.
