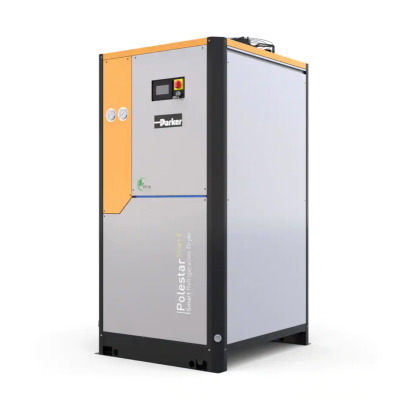

Parker PSE700, 700 CFM, 3" NPT, 460/3/60, PoleStar Smart-E Cycling Refrigerated Air Dryers
PoleStar Smart-E (PSE) Series Cycling Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America
Energy saving refrigerated compressed air dryers effecitve in removing water vapor, down to levels in accorance with ISO8573-1, from compressed air flow rates between 325-6000 scfm while maintaining industry leading low operating costs.
Advantages
• State-of-the art aluminum SmartPack heat exchanger includes a large air-to-air heat exchanger to pre-cool incoming compressed air and reduce energy consumption
• Efficient SmartPack HX, electronic hot-gas valve and innovative micro-channel condensers result in lower adsorbed power and about 40% less refrigerant verses additional solutions
• Low pressure drop design of the SmartPack HX and low absorbed power of the refrigerant circuit make PSE dryers a highly competitive solution with lower operating costs vs comparable dryers.
• Comprehensive electronic controllers, including touch screen panels on PSE700 and larger, provide indication of compressed air temperature, service reminder, data log, alarm history, integral capacitive drain control and much more.
• LED unit status indicator on model PSE1400 and larger.
• High and low pressure gauges for refrigerant circuit on models PSE700 and larger.
• Remote communication protocol, industry 4.0 ready, on all units; web server from model PSE700 and IoT ready from model PSE1400.
• Energy savings technology that enables all PSE dryers to save energy by cycling the refrigerant compressor off at partial load while maintaining a constant outlet dewpoint.
• Variable speed fans on PSE1400 and larger deliver additional cost savings at partial load and increased condensation stability.
• Compliant scroll refrigeration compressors offer longer life, lower noise and energy savings of up to 20% compared to piston alternatives.
• Inlet and outlet air connections installed on both sides of PSE2000 and larger allow for installation flexibility and simplify banking multiple units together.
• Low Global Warming Potential (GWP) refrigerant, R513A, used on all PSE units - protecting the environment.
