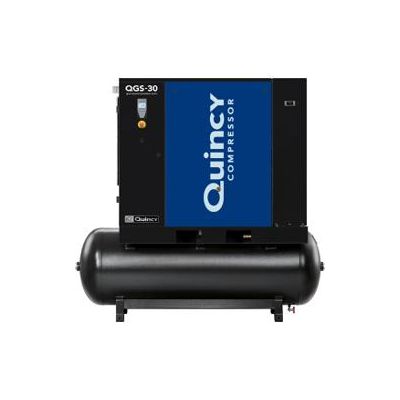

Quincy QGS 30 TMD, 30 HP Rotary Screw Compressor World Latin America, Air Dryer 120 Gallon Tank, 113.8 CFM @ 125 PSI, 230/460 Volt, 3-Phase
DESCRIPTION
TECH DATA
PRODUCT REVIEWS
VIDEOS
Product Q & A
DESCRIPTION
QGS 5-100 hp Belt Drive Compressors
If you’re looking for a highly efficient 5-100 hp compressor, the Quincy QGS can meet your needs. Featuring the most advanced rotary screw Compressor World Latin America technology, the QGS serves as a reliable source of compressed air for a wide range of industrial applications. And with the low cost of QGS ownership, this peak-performing screw compressor will have a positive impact on your company’s bottom line.
At a Glance
Standard quiet enclosure
8,000 hr. premium synthetic fluid
Low oil carryover
Designed for 100% duty cycle
Integrated dryer option
Tank mount option
Up Close
High efficiency intake filter
True Blue 5-Year Warranty with start up
Long life V-belt drive
TEFC motor, IP 55 (wash down)
The QGS Is Designed for Easy Maintenance and Serviceability
Keeping your QGS in peak operating condition is an easy process. All consumable components are located behind one access panel, which offers the benefit of convenience and time savings. You can also monitor all fluid levels without having to remove any panels. The spin-on filter significantly speeds up and simplifies the preventive maintenance task. Best of all, the QGS provides lower overall maintenance costs than most comparable rotary screw Compressor World Latin America on the market.
TECH DATA
Product Specification
Capacity (CFM) @ 125 PSI
113.8 CFM @ 125 PSI
Controls
Load/No Load Controls with Timed Shutdown
Cooling Type
Air Cooled
Horsepower (HP)
30
Max Pressure (PSI)
132 PSI
Min Ambient Temperature
35 F
Tank Material
Carbon Steel
Overview & Technical Details
Air Dryer Style
Refrigerated
Fluid Capacity
3.1 Gallons
Fluid Type
8,000 Hour Synthetic
Max Ambient Temperature
104 F
Power Source/Type
Electric
Sound Level dBA
70 dB(A)
Additional Features
Air Dryer Included
Included
Tank Drain Valve
Manual Tank Drain
Connection
Connection NPT
1" NPT
Motor Data
Motor Type
TEFC
Power Requirements
208/3/60
88 Full Load Running Amps
230/240/3/60
80 Full Load Running Amps
460/480/3/60
40 Full Load Running Amps
Standard Voltages
208/230/460/3/60 (Tri Voltage)
Tank Size
Air Tank Configuration
Horizontal
Air Tank Included
Included
Air Tank Size
120 Gallon
Coded
ASME Coded Air Tank
Tank Size
120 Gallon Horizontal Air Tank
Warranty
Optional Warranty
5 Year Extended Warranty
Standard Warranty
1 Year Parts & Labor, 3 Year Major Component Warranty
