Quincy QGS 40 BM-3. 40 HP Rotary Screw Compressor World Latin America 164/123 CFM, 125/175 PSI, 230/460-Volt 3-Phase

Model:
QGS 40 BM-3
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Ships Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

Quincy QGS 40 BM-3. 40 HP Rotary Screw Compressor World Latin America 164/123 CFM, 125/175 PSI, 230/460-Volt 3-Phase

QGS 5-100 hp Belt Drive Compressors

If you’re looking for a highly efficient 5-100 hp compressor, the Quincy QGS can meet your needs. Featuring the most advanced rotary screw Compressor World Latin America technology, the QGS serves as a reliable source of compressed air for a wide range of industrial applications. And with the low cost of QGS ownership, this peak-performing screw compressor will have a positive impact on your company’s bottom line.

eye-icon At a Glance

  • Standard quiet enclosure
  • 8,000 hr. premium synthetic fluid
  • Low oil carryover
  • Designed for 100% duty cycle
  • Integrated dryer option
  • Tank mount option

eye-icon Up Close

  • High efficiency intake filter
  • True Blue 5-Year Warranty with start up
  • Long life V-belt drive
  • TEFC motor, IP 55 (wash down)

The QGS Is Designed for Easy Maintenance and Serviceability

Keeping your QGS in peak operating condition is an easy process. All consumable components are located behind one access panel, which offers the benefit of convenience and time savings. You can also monitor all fluid levels without having to remove any panels. The spin-on filter significantly speeds up and simplifies the preventive maintenance task. Best of all, the QGS provides lower overall maintenance costs than most comparable rotary screw Compressor World Latin America on the market.





TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      164 CFM @ 100 PSI
    • Capacity (CFM) @ 125 PSI
      155 CFM @ 125 PSI
    • Capacity (CFM) @ 150 PSI
      133 CFM @ 150 PSI
    • Capacity (CFM) @ 175 PSI
      123 CFM @ 175 PSI

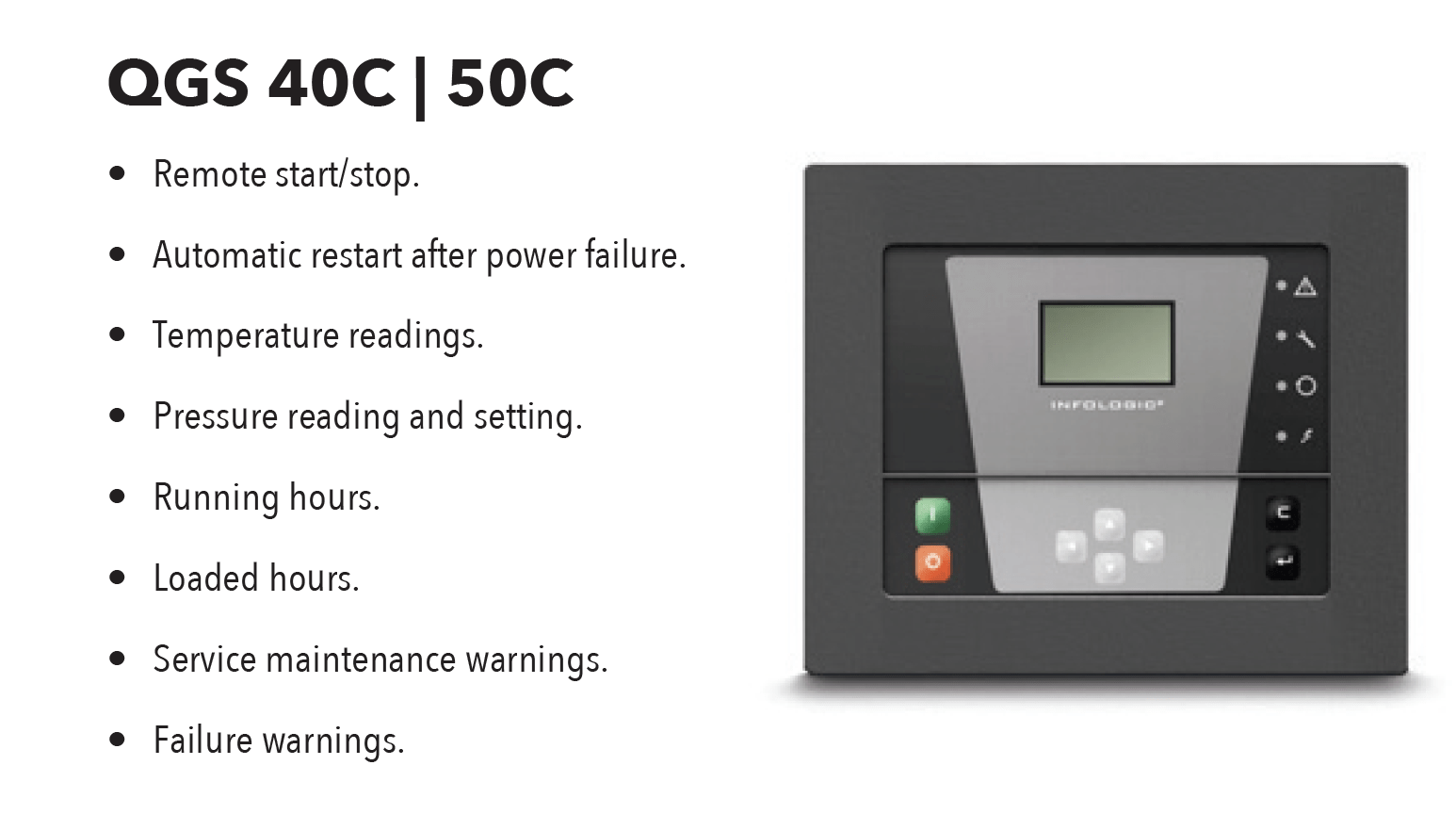

    • Controls
      Load/No Load Controls with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      40
    • Min Ambient Temperature
      34 F
  • Overview & Technical Details

    • Fluid Capacity
      7 Gallons
    • Fluid Type
      8,000 Hour Synthetic
    • Max Ambient Temperature
      115 F
    • Power Source/Type
      Electric
    • Sound Level dBA
      68 dB(A)
  • Additional Features

    • After Cooler
      Included
  • Connection

    • Connection NPT
      1.25" NPT
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      53" x 31" x 62"
    • Weight (lbs)
      1279.000000
  • Power Requirements

    • 230/240/3/60
      104 Full Load Running Amps
    • 460/480/3/60
      52 Full Load Running Amps
    • Standard Voltages
      230/3/60 or 460/3/60
  • Warranty

    • Optional Warranty
      5 Year Extended Warranty
    • Standard Warranty
      1 Year Parts & Labor, 3 Year Major Component Warranty
