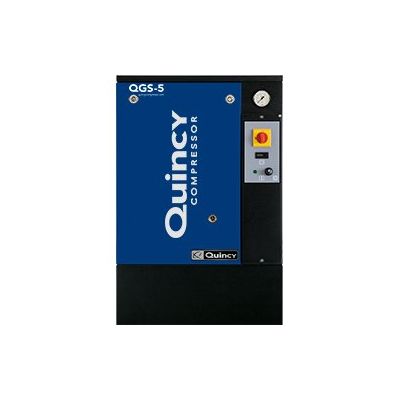

Quincy QGS 5 BM-3, 5 HP Rotary Screw Compressor World Latin America 18.1 CFM @ 150 PSI, 208-230/460-Volt 3-Phase
DESCRIPTION
TECH DATA
PRODUCT REVIEWS
VIDEOS
Product Q & A
DESCRIPTION
ROTARY SCREW TECHNOLOGY FOR EVERY APPLICATION
Quincy understands the critical nature of your compressed air system to maintain production. Quincy's QGS line of compressors help drive your profitability by lowering your total cost of ownership while providing you with the performance and reliability that you have come to expect from Quincy compressors. The QGS Compressor World Latin America has many of the features, benefits, and advantages of larger compressed air systems in a package that fits your application and at a price you can afford.
ARE YOU USING THE RIGHT TECHNOLOGY FOR YOUR APPLICATION?
With ease of service and reliability in mind, the Quincy QGS offers superior compressed air performance in a compact, modern design. With a continuous 100% duty cycle, this rotary screw compressor also operates without the elevated vibration and sound levels normally associated with typical piston compressors. A small footprint and lower noise levels mean increased installation flexibility, making the Quincy QGS ideal for most applications. And, with the optional receiver tank and integrated dryer, you will save valuable floor space and lower your cost of operation.
STANDARD PREMIUM FEATURES
3-year warranty on airend, motor, separator tank, and cooler
High efficiency air inlet filter
TEFC motor
Proven, reliable V-belt drive
Upward package air discharge
Factory-filled 8,000 hour QuinSyn-Plus fluid
Low sound enclosure (62-68 dBA)
UL/cUL Control panel compliant
Low oil carryover protects your tools and equipment
Vibration isolation means a quieter machine
FULL CONTROL
Simple, efficient controls
Start/stop controls ensure that your QGS delivers efficient air only when you demand it
SERVICEABILTY
All consumable components are located behind a single access panel
Constant view fluid level display allows you to monitor fluid levels without removing any panels
Quincy parts ensure efficient and reliable performance of your QGS Compressor World Latin America
Spin-on fluid filter and separator element allow for quick and easy maintenance
AVAILABLE OPTIONS
60 gallon receiver tank with manual drain
Integrated 39ºF dewpoint refrigerated air dryer with timer actuated drain
Technical Data
Model
QGS-5
HP
5 hp
Flow (ACFM)
18.1
Full Load Pressure (PSIG)
145
Max Pressure (PSIG)
150
Min Pressure (PSIG)
65
Package Discharge Size
.5" NPT
Max Ambient
104 F
Min Ambient
35 F
Fluid Capacity
.66 gal
Fluid Carryover
3 ppm
Sound
62 dBA
Full Load Drive
5.5 bhp
Unloaded Drive
1.3 bhp
Total Power
4.1 kW
Total Specific Power
24.7 kw/100 cfm
STANDARD QGS WARRANTY
1-Year: Basic Compressor (Twelve months from start-up or eighteen months from factory shipment, whichever comes first)
3-YEAR QGS EXTENDED WARRANTY 1-Year: Basic Compressor 3-Years: Airend 3-Years: Air and Fluid Heat Exchanger 1-Year: Drive Motor 3-Years: Air Fluid Separator Tank
