  • Atlas Copco 30 HP Rotary Screw Compressor World Latin America 132 Gallon Air Tank & Integrated Air Dryer 133.9 CFM | GA22-125 AFF 208-230/460, 132 Gallon API | 8153657815

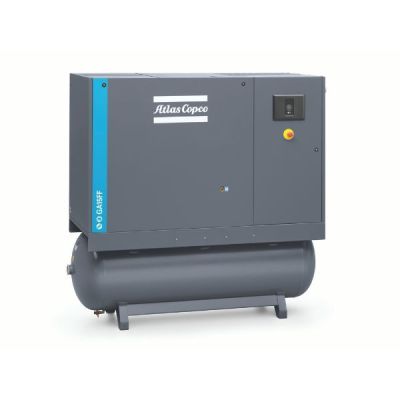

Atlas Copco 30 HP Rotary Screw Compressor World Latin America 132 Gallon Air Tank & Integrated Air Dryer 133.9 CFM | GA22-125 AFF 208-230/460, 132 Gallon API | 8153657815

Atlas Copco 30 HP Rotary Screw Compressor World Latin America 132 Gallon Air Tank & Integrated Air Dryer 133.9 CFM | GA22-125 AFF 208-230/460, 132 Gallon API | 8153657815
Model:
GA22-125 AFF 208-230/460, 132 Gallon API
Vendor Item Number:
8153657815
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Request a Quote
Ships Factory Direct
Rating:
100% of 100
1  Review
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

Atlas Copco 30 HP Rotary Screw Compressor World Latin America 132 Gallon Air Tank & Integrated Air Dryer 133.9 CFM | GA22-125 AFF 208-230/460, 132 Gallon API | 8153657815

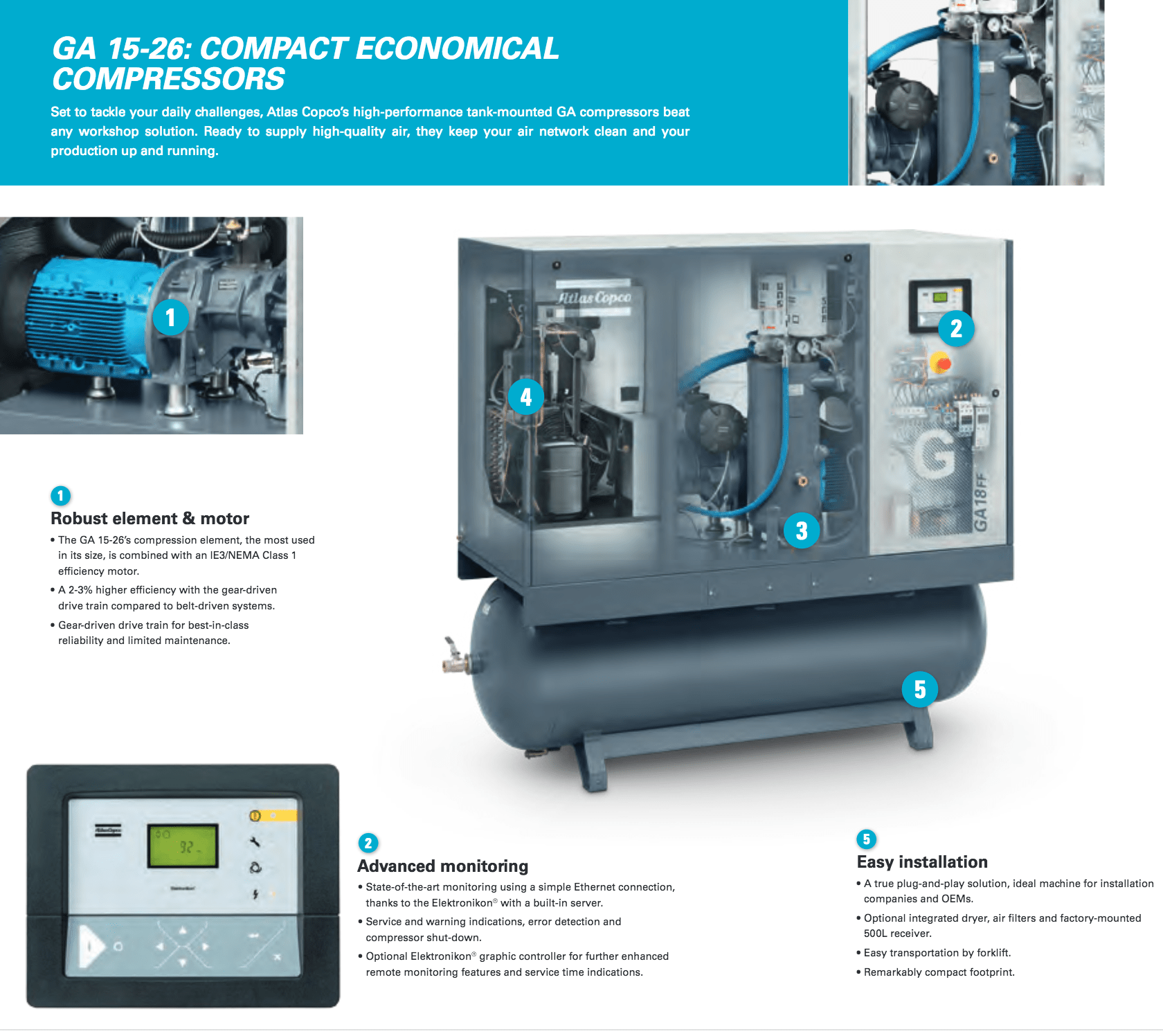

Atlas Copco GA Series 15-26- Single Stage, air-cooled and oil injected compressors.  GA Series carries 20, 25, 30 & 35 Horsepower models which include drive motor, air and oil systems, Mark 5 Graphic and electrical regulating controls.  These units are available to serve your needs in either a Pack or Full Feature.

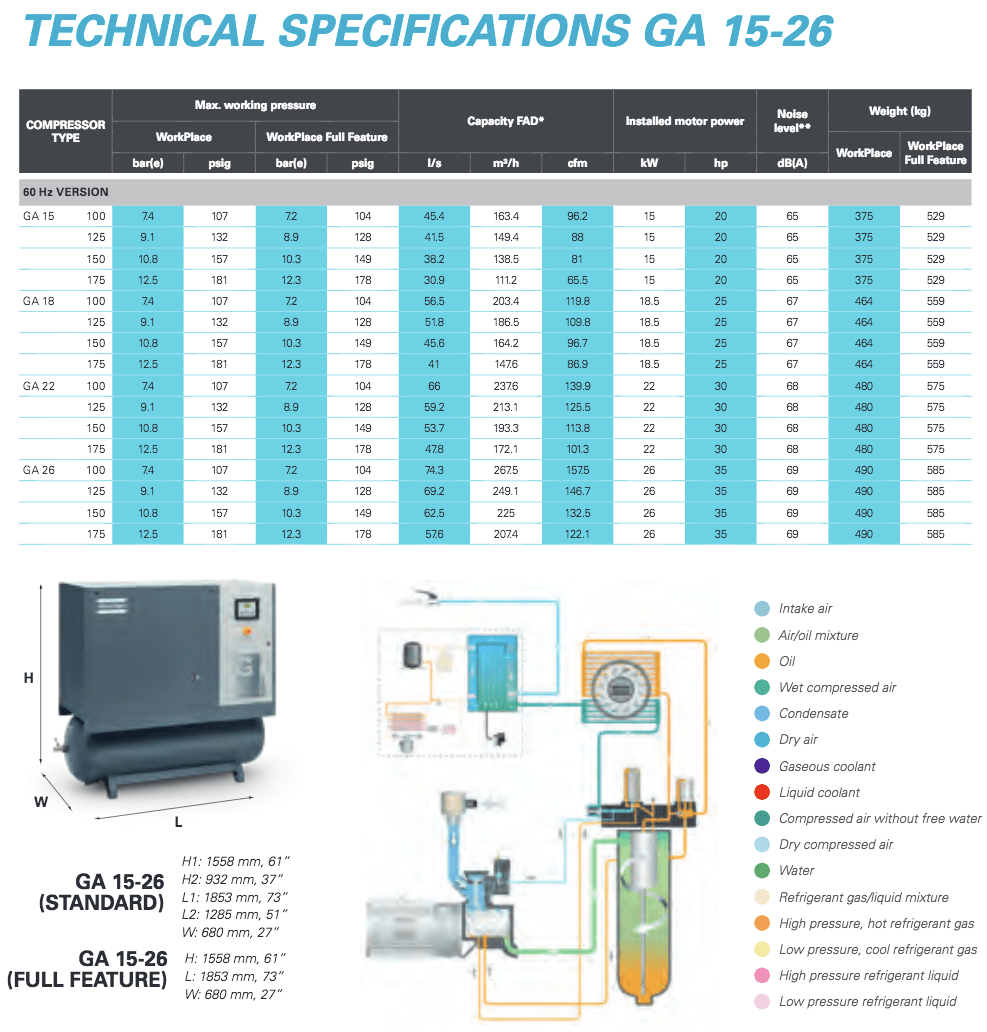

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100/125 PSI
      133.9 CFM @ 125 PSI
    • Compressor Style
      Lubricated Rotary Screw
    • Cooling Type
      Air Cooled
    • Dew Point
      + 39 F
    • Horsepower (HP)
      30
    • Max Pressure (PSI)
      125 PSI
    • Pressure Rating
      125 PSIG
    • Pump Type
      Oil Injected Rotary Screw
    • Tank Material
      Carbon Steel

  • Overview & Technical Details

    • Air Dryer Style
      Refrigerated
    • Approach Temperature
      20 Degrees F
    • Certifications
      UL & ASME
    • Fluid Type
      Factory Fluid
    • Power Source/Type
      Electric
    • Sound Level dBA
      67 dBA

  • Additional Features

    • Air Dryer Included
      Included
    • Air Filtration Included
      Included
    • Tank Drain Valve
      Manual Drain

  • Connection

    • Connection NPT
      1" NPT

  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      75" x 33" x 73"
    • Height (inch)
      73"
    • Length (inch)
      75"
    • Width (inch)
      33"
    • Weight (lbs)
      1686.000000

  • Motor Data

    • Motor Type
      TEFC

  • Power Requirements

    • Standard Voltages
      208/230/460/3/60

  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Yes
    • Air Tank Size
      132 Gallon
    • Tank Size
      132 Gallon Horizontal Air Tank

  • Warranty

    • Standard Warranty
      1 Year Parts & Labor Warranty
