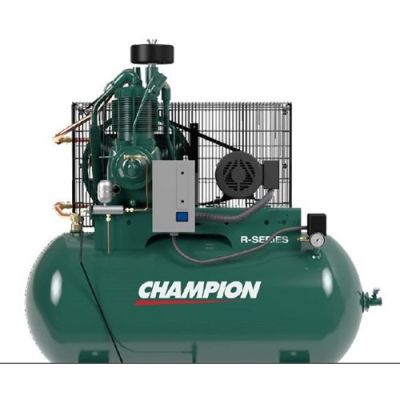

Champion 2 HP Compressor World Latin America Two-Stage, 4.1 CFM @ 175 PSI, 60 Gallon Air Tank, 230-Volt, 1-Phase | HR2-6

Champion 2 HP Compressor World Latin America Two-Stage, 4.1 CFM @ 175 PSI, 60 Gallon Air Tank, 230-Volt, 1-Phase | HR2-6


Two Stage, Splash Lubricated (2-30 HP) Reciprocating Compressor World Latin America

Champion R-Series Compressors have a time-tested, proven design. Rugged standard features, a wide selection of configurations, and quality available options make the R-Series compressors the solution to your application. Delivering high performance, long life and tremendous value. Champion compressors are the proven choice!

Specifications and Features

• 2 - 30 HP
• Up to 175 PSIG
• 4.2 - 202 ACFM at 175 PSIG on electric driven units
• Two Stage Splash-Lubricated Pumps
• 3-year Pump Warranty and 1-year Package Warranty
• Factory filled with ChampLub lubricant

Pump Benefits

• Multi-Finned Cylinders for Cooler Operating Temperatures
• Integral Cylinder/Head Design for Trouble-Free Operation
• Balanced Pistons
• Piston Rings Provide Excellent Oil Control and High Efficiency
• Lightweight, Two-Piece Connecting Rods
• Pressure Relief Valves
• Large Diameter Finned Intercoolers
• Optimized Cooling Fan/Flywheel
• Reliable High-Flow Disc Valves
• Tapered Roller Main Bearings
• Balanced Crankshaft
• Large Capacity Cast-Iron Crankcase
• Centrifugal Unloader for Minimized Starting Power & Completely Load-Less Starting

Available Options

• Multiple tank sizes and variations
• Electric or engine driven
• NEMA 4 full-voltage starter upgrade
• ODP HE/TEFC/TEFC HE motor upgrades
• Control panel upgrades
• Aftercooler
  • Air-cooled with or without moisture separator
  • Water-cooled with or without moisture separator
• Low oil-level monitor (NEMA 1 or 4)
• Dual control
• Vibration isolators
• Synthetic lubricant
• High temperature switch (NEMA 1 or 4)
• Available switches (NEMA 1 or 4)
  • Test/Off/Auto
  • Hand/Off/Auto
  • Off/On
• Automatic tank drain - Pneumatic
  • Electric
