R-40A-CC Climate Control Piston Bare Pump with Flywheel Rated for 7.5-10 HP Motor

R-40A-CC Climate Control Piston Bare Pump with Flywheel Rated for 7.5-10 HP Motor
Model:
R-40A-CC
Order by Phone
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Request a Quote
Ships Direct
Be the first to review
Write a Review
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

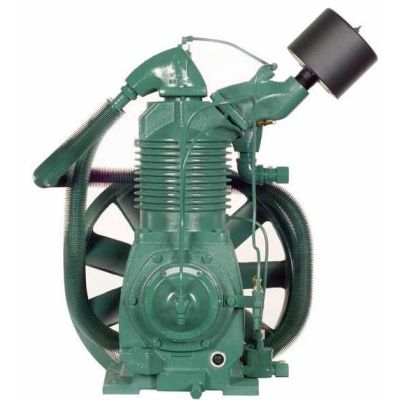

R-40A-CC Climate Control Bare Pump with Flywheel Rated for 7.5-10 HP Motor

The Champion Climate Control Series R-40A-CC Bare Pump is operational with 7.5-10  HP Motors. Model Matrix Number: R-40A-CC. Climate Control Pumps not available with head unloaders.


Climate Control

TECH DATA

  • Product Specification

    • CFM (Capacity)
      45.2 @ 80 PSIG
    • Controls
      Start/Stop Operation
    • Cooling Type
      Air Cooled
    • Crank Diameter
      2-1/4"
    • Cyl
      4
    • Flywheel
      Included
    • Flywheel - Width
      3 1/2"
    • Flywheel Diameter
      22 3/16"
    • Flywheel Grooves
      3VB
    • Horsepower (HP)
      7.5 - 10 HP
    • Oil Capacity
      6.5 Quarts
    • Pressure Rating
      125 PSI
    • Pump Speed (RPM)
      500

  • Dimensions & Weight

    • Base - Depth
      13 1/4"
    • Base - Width
      12-7/8"
    • Bolt Hole to Wheel (Max.)
      5-3/4"
    • Boltdown - Depth
      8-1/16""
    • Boltdown - Width
      5-11/16""
    • Boltdown Hole Diameter
      9/16"
    • Boltdown to Edge
      3/4"
    • HP Exh. Opening Manifold
      1-1/4" Tubing
    • Overall Depth
      29"
    • Overall Height
      34"
    • Overall Width
      34"
    • Weight (lbs)
      440.000000

  • Warranty

    • Standard Warranty
      Factory Warranty
