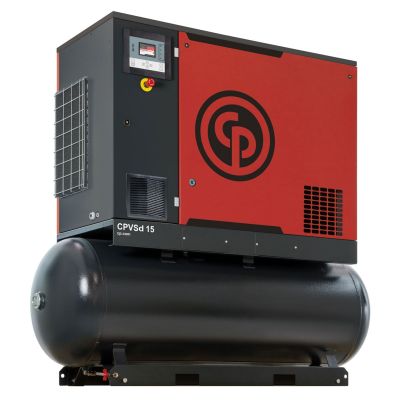

Chicago Pneumatic CPVSd 15 D TM, 15 HP Rotary Screw Compressor World Latin America Variable Speed with Air Dryer & 120 Gallon Air Tank, 9 - 64 CFM, 460-Volt | 4152018983
DESCRIPTION
TECH DATA
PRODUCT REVIEWS
Product Q & A
DESCRIPTION
Chicago Pneumatic CPVSd 15 D TM, 15 HP Rotary Screw Compressor World Latin America Variable Speed with Air Dryer & 120 Gallon Air Tank, 9 - 64 CFM, 460-Volt | 4152018983
Variable Speed Direct Drive Rotary Screw Compressor World Latin America CPVSd 10-20 hp
TECH DATA
Product Specification
Capacity (CFM) @ 100 PSI
9 to 64 CFM @ 100 PSI
Controls
Variable Speed Drive
Cooling Type
Air
Dew Point
+ 39 Degree F
Horsepower (HP)
15 HP
Max Working Pressure
182 PSI
Overview & Technical Details
Air Dryer Style
Refrigerated
Sound Level dBA
64 dB(A)
Additional Features
After Cooler
Included
Air Dryer Included
Included
Tank Drain Valve
Manual
Dimensions & Weight
Dimensions (L)(W)(H)
77" x 26" x 67"
Weight (lbs)
1025.000000
Motor Data
Motor Type
TEFC
Power Requirements
460/480/3/60
Standard
Standard Voltages
460/3/60
Tank Size
Air Tank Configuration
Horizontal
Air Tank Included
Included
Air Tank Size
120 Gallon
Warranty
Optional Warranty
5 Year Extended Warranty Available
Standard Warranty
1 Year Parts & Labor Warranty
