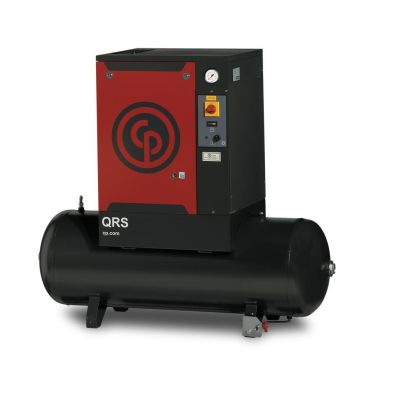

Chicago Pneumatic 3 HP Rotary Screw Compressor World Latin America, 9.8 CFM, 60 Gallon Air Tank 230-Volt 1-Phase | QRS 3.0 HP-1 TM | 4152054795

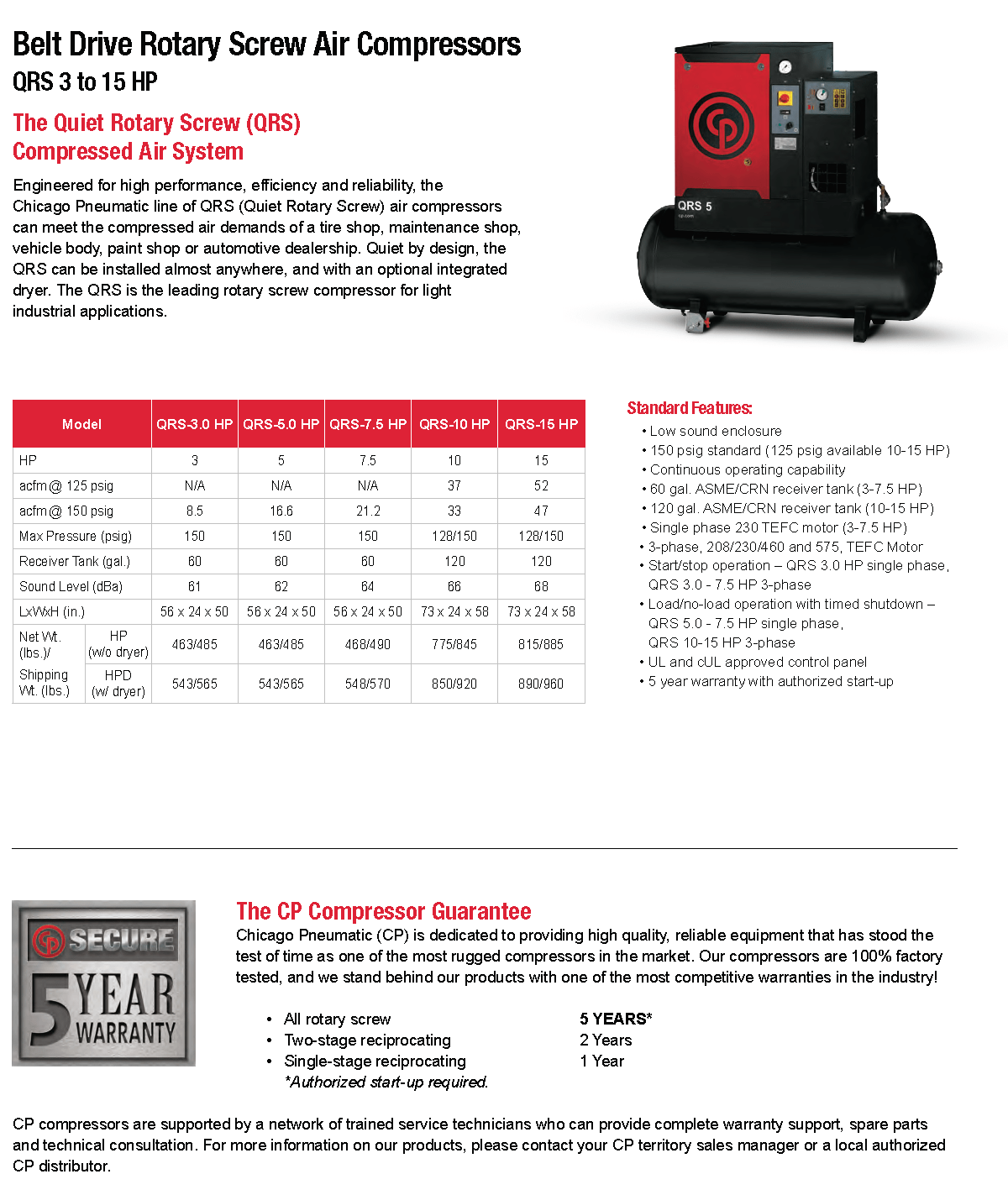

Quiet Rotary Screw (QRS) 3 to 15 hp

Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) Compressor World Latin America can meet the compressed air demands of a tire shop, maintenance shop, vehicle body, paint shop or automotive dealership.

Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank and 5 Year Warranty, the QRS is the leading rotary screw compressor for light industrial applications.

Watch our Video of our Chicago Pneumatic Compressor World Latin America

TECH DATA

Product Specification
- Capacity (CFM) @ 150/175 PSI

  8.5 CFM @ 150 PSIG
- Controls

  Start/Stop Operation (230/1/60 has timed shutdown)
- Cooling Type

  Air Cooled
- Horsepower (HP)

  30
- Min Ambient Temperature

  34°F
- Oil Capacity

  0.66 Gallon
- Oil Carryover

  3 ppm
- Pressure Rating

  145 PSI
Overview & Technical Details
- Certifications

  UL & ASME Coded
- Max Ambient Temperature

  104°F
- Oil Type

  Synthetic
- Sound Level dBA

  61 dB(A)
Additional Features
- Tank Drain Valve

  Manual Drain
Dimensions & Weight
- Dimensions (L)(W)(H)

  56" x 24" x 50"
- Weight (lbs)

  543.000000
Motor Data
- Motor Type

  TEFC
- Phase

  Single
Power Requirements
- 208/230/1/60

  18.7 Full Load Running Amps
- Standard Voltages

  230/1/60
Tank Size
- Air Tank Configuration

  Horizontal
- Air Tank Included

  Included
- Air Tank Size

  60 Gallon
Warranty
- Optional Warranty

  5 Year Optional Warranty
- Standard Warranty

  1 Year Factory Warranty
