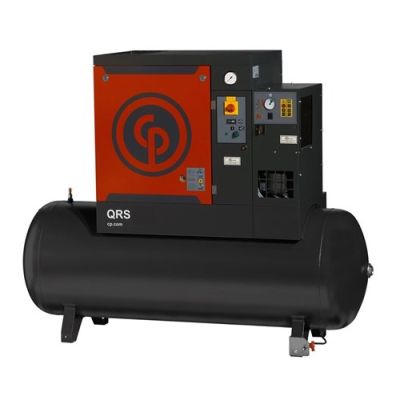

Chicago Pneumatic 3 HP Rotary Screw Compressor World Latin America, 9.8 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230-Volt, 1-Phase | QRS 3.0 HPD-1 TM | 4152054797

Model:
QRS 3.0 HPD-1 TM
Vendor Item Number:
4152054797
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Ships Factory Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

Chicago Pneumatic 3 HP Rotary Screw Compressor World Latin America, 9.8 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230-Volt, 1-Phase | QRS 3.0 HPD-1 TM | 4152054797





Quiet Rotary Screw (QRS)



Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) Compressor World Latin America can meet the compressed air demands of a tire shop, vehicle body, paint shops and automotive dealerships.

Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank and a 5 Year Warranty, the QRS is the leading rotary screw compressor for light industrial applications.

Features:

  • Low sound enclosure with compact dimensions
  • 150 psig standard
  • Continuous operating capability
  • Basemount (option)
  • Manual tank drain
  • Three (3) phase, 208/230/460 or 230/1/60
  • Start/Stop operation
  • Load/No Load operation with timed shutdown
  • UL and cUL approved control panel
  • 5 year warranty with authorized start-up

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 150 PSI
      9.8 CFM @ 150 PSI
    • Compressor Style
      Lubricated Rotary Screw
    • Controls
      Start/Stop Operation (230/1/60 has timed shutdown)
    • Cooling Type
      Air Cooled
    • Dew Point
      39 F
    • Horsepower (HP)
      3
    • Min Ambient Temperature
      34° F
    • Oil Capacity
      0.66 Gallon
    • Oil Carryover
      3 ppm
    • Rated Duty Cycle
      100%
    • Tank Material
      Carbon Steel
  • Overview & Technical Details

    • Air Dryer Style
      Refrigerated
    • Certifications
      ASME Coded Tank
    • Electrical Starting
      Across the line Starting
    • Fluid Type
      Synthetic
    • Max Ambient Temperature
      104°F
    • Oil Type
      Synthetic
    • Power Source/Type
      Electric
    • Sound Level dBA
      61 dB(A)
  • Additional Features

    • Air Dryer Included
      Included
    • Tank Drain Valve
      Manual Drain
  • Connection

    • Connection NPT
      1/2"
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      56" x 24" x 50"
    • Height (inch)
      50"
    • Length (inch)
      56"
    • Width (inch)
      24"
    • Weight (lbs)
      565.000000
  • Motor Data

    • Motor Type
      TEFC
  • Power Requirements

    • 208/230/1/60
      18.7 Full Load Running Amps
    • Standard Voltages
      230/1/60
  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Included
    • Air Tank Size
      60 Gallon
    • Coded
      ASME Coded
    • Tank Size
      60 Gallon
  • Warranty

    • Optional Warranty
      5 Year Extended Warranty Optional
    • Standard Warranty
      1 Year Parts & Labor
