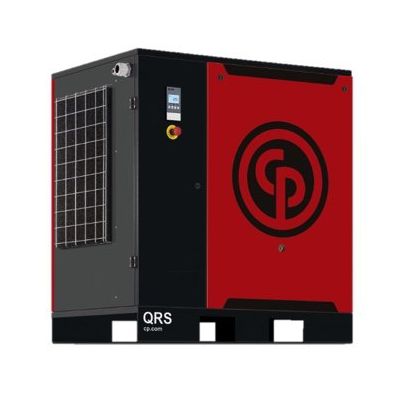

Chicago Pneumatic 30 HP Rotary Screw Compressor, 114 CFM @ 125 PSI, 208-230/460-Volt, 3-Phase | QRS 30 125 BM | 4152027004

Standard Features;

- Low Sound Enclosure

- Wye Delta Starting

- Tri Voltage Motor

- TEFC Drive Motor, 3-Phase 208/230/460/3/60 and 575 Volt Available

- Vibration Isolated Assembly

- Electronic Microprocessor Controller

- Spin on Oil Filter and Separator

- Load/No Load with Intelligent Shutdown

- Maintenance Indication

- Continuous Operation Capability

- UL and cUL Approved Control Panel

Warranty

- 1 Year Parts & Labor

- Optional 5 Year Extended Warranty

Options; Every QRS 20-30 can be supplied base mounted or with a factory-mounted 120 gallon receiver tank and refrigerated air dryer to save vital floor space.

Watch our Video of our Chicago Pneumatic Compressor World Latin America

TECH DATA

Product Specification
- Capacity (CFM) @ 125 PSI

  113.8 CFM @ 125 PSI
- Controls

  Load/No Load Controls with Timed Shutdown
- Cooling Type

  Air Cooled
- Horsepower (HP)

  30 HP
- Min Ambient Temperature

  34°F
- Oil Capacity

  3.17 Gallons
- Pressure Rating

  125 PSI
Overview & Technical Details
- Certifications

  UL and cUL approved control panel
- Electrical Starting

  Wye-Delta, reduced voltage start
- Max Ambient Temperature

  115°F
- Max Oil Carry-Over (mg/m3)

  < 3
- Oil Type

  Synthetic
- Sound Level dBA

  70 dBA
Dimensions & Weight
- Dimensions (L)(W)(H)

  45" x 31" x 49"
- Weight (lbs)

  1200.000000
Motor Data
- Motor Type

  TEFC
Power Requirements
- 208/3/60

  72.45 Full Load Amps
- 230/240/3/60

  65.52 Full Load Amps
- 460/480/3/60

  32.76 Full Load Amps
- Standard Voltages

  208/230/460/3/60
Tank Size
- Tank Size

  N/A
Warranty
- Standard Warranty

  5 year warranty with Authorized Start-up
