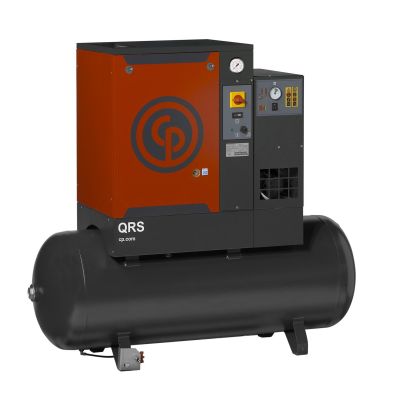

Chicago Pneumatic QRS 7.5 HPD-1 TM, 7.5 HP Rotary Screw Compressor World Latin America, 26.1 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230 Volt 1-Phase | 4152054809

Chicago Pneumatic QRS 7.5 HPD-1 TM, 7.5 HP Rotary Screw Compressor World Latin America, 26.1 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230 Volt 1-Phase | 4152054809

Skip to the end of the images gallery

Chicago Pneumatic 7.5 HP Rotary Screw Compressor World Latin America, 26.1 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230 Volt 1-Phase | QRS 7.5 HPD-1 TM

Skip to the beginning of the images gallery

Model:

QRS 7.5 HPD-1 TM

Vendor Item Number:

4152054809

Request a Quote

Order by Phone

Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.

Our Team Consists of "Compressor World Latin America Experts", Challenge Us!

Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States

"Over 100 Years of Experience"

Request a Quote

Ships Direct

Rating:

100% of 100

4 Reviews

Write a Review

Share
FB TW Pint email
Factory Location: Charlotte, NC

DESCRIPTION
TECH DATA
PRODUCT REVIEWS
VIDEOS
Product Q & A

DESCRIPTION

Chicago Pneumatic 7.5 HP Rotary Screw Compressor World Latin America, 26.1 CFM @ 150 PSI, 60 Gallon Tank & Air Dryer 230 Volt 1-Phase | QRS 7.5 HPD-1 TM

Quiet Rotary Screw (QRS) 3 to 15 hp

Engineered for high performance, efficiency and reliability, the Chicago Pneumatic line of QRS (Quiet Rotary Screw) Compressor World Latin America can meet the compressed air demands of a tire shop, maintenance shop, vehicle body, paint shop or automotive dealership.

Quiet by design, the QRS can be installed almost anywhere. With standard mounted receiver tank and 5 Year Warranty, the QRS is the leading rotary screw compressor for light industrial applications.

Watch our Video of our Chicago Pneumatic Compressor World Latin America

TECH DATA

Product Specification
- Capacity (CFM) @ 150 PSI

  26.1 CFM @ 150 PSI
- Compressor Style

  Lubricated Rotary Screw
- Controls

  Load/No Load Controls with Timed Shutdown
- Cooling Type

  Air Cooled
- Dew Point

  39 F
- Horsepower (HP)

  7.5
- Max Pressure (PSI)

  150 PSI
- Min Ambient Temperature

  34°F
- Oil Capacity

  0.66 Gallon
- Oil Carryover

  3 ppm
- Rated Duty Cycle

  100%
- Tank Material

  Carbon Steel
Overview & Technical Details
- Air Dryer Style

  Refrigerated
- Certifications

  UL Certified, ASME Coded
- Electrical Starting

  Across the line Starting
- Max Ambient Temperature

  104°F
- Oil Type

  Synthetic
- Power Source/Type

  Electric
- Sound Level dBA

  64 dB(A)
Additional Features
- Air Dryer Included

  Included
- Tank Drain Valve

  Manual Drain
Connection
- Connection NPT

  1/2"
Dimensions & Weight
- Dimensions (L)(W)(H)

  56" x 24" x 50"
- Height (inch)

  50"
- Length (inch)

  56"
- Width (inch)

  24"
- Weight (lbs)

  600.000000
Motor Data
- Motor Type

  TEFC
Power Requirements
- 208/230/1/60

  36 Full Load Running Amps
- Standard Voltages

  230/1/60
Tank Size
- Air Tank Configuration

  Horizontal
- Air Tank Included

  Included
- Air Tank Size

  60 Gallon
- Coded

  ASME Coded
- Tank Size

  60 Gallon
Warranty
- Optional Warranty

  5 Year Extended Warranty Optional
- Standard Warranty

  1 Year Parts & Labor
