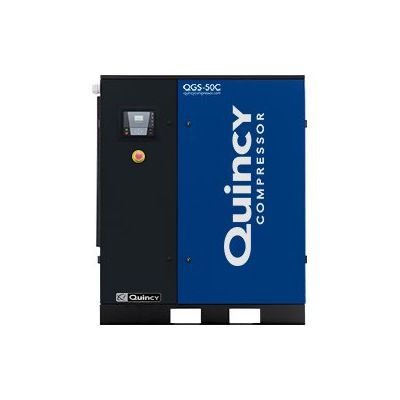

Quincy QGS 50c, 50 HP Rotary Screw Compressor World Latin America, Dual Voltage 230/460 Volt, 3-Phase
DESCRIPTION
TECH DATA
PRODUCT REVIEWS
VIDEOS
Product Q & A
DESCRIPTION
QGS 5-100 hp Belt Drive Compressors
If you’re looking for a highly efficient 5-100 hp compressor, the Quincy QGS can meet your needs. Featuring the most advanced rotary screw Compressor World Latin America technology, the QGS serves as a reliable source of compressed air for a wide range of industrial applications. And with the low cost of QGS ownership, this peak-performing screw compressor will have a positive impact on your company’s bottom line.
At a Glance
Standard quiet enclosure
8,000 hr. premium synthetic fluid
Low oil carryover
Designed for 100% duty cycle
Integrated dryer option
Tank mount option
Up Close
High efficiency intake filter
True Blue 5-Year Warranty with start up
Long life V-belt drive
TEFC motor, IP 55 (wash down)
The QGS Is Designed for Easy Maintenance and Serviceability
Keeping your QGS in peak operating condition is an easy process. All consumable components are located behind one access panel, which offers the benefit of convenience and time savings. You can also monitor all fluid levels without having to remove any panels. The spin-on filter significantly speeds up and simplifies the preventive maintenance task. Best of all, the QGS provides lower overall maintenance costs than most comparable rotary screw Compressor World Latin America on the market.
TECH DATA
Product Specification
Capacity (CFM) @ 125 PSI
203.1 CFM @ 125 PSi
Controls
Load/No Load Controls with Timed Shutdown
Horsepower (HP)
50
Max Pressure (PSI)
132 PSI
Min Ambient Temperature
34 F
Operating Pressure (PSI)
125 PSI
Pressure Rating
125 PSI
Overview & Technical Details
Fluid Capacity
7 Gallons
Fluid Type
8,000 Hour Synthetic
Max Ambient Temperature
115 F
Power Source/Type
Electric
Sound Level dBA
69 dB(A)
Additional Features
After Cooler
Included
Connection
Connection NPT
1.25" NPT
Dimensions & Weight
Dimensions (L)(W)(H)
53" x 31" x 62"
Height (inch)
62"
Length (inch)
53"
Width (inch)
31"
Weight (lbs)
1279.000000
Power Requirements
230/240/3/60
130 Full Load Amps
460/480/3/60
65 Full Load Amps
Standard Voltages
230/3/60 or 460/3/60
Warranty
Optional Warranty
5 Year Extended Warranty
Standard Warranty
1 Year Parts & Labor, 3 Year Major Component Warranty
PRODUCT REVIEWS
Overall Rating
93%
3Reviews
Customer Reviews By Star Rating
100%
5 Star (0 Review)
80%
4 Star (0 Review)
60%
3 Star (0 Review)
40%
2 Star (0 Review)
20%
1 Star (0 Review)
Overall Product Rating
Write Your Own Review
Overall Rating
0
3D VIEWING/VIDEOS
Videos
Product Q & A
Sort By:
Questions:
What size feeder breaker is recommended for the QGS50 at 480 volts
1 Answers
Question By: Grant Price on Jul 23 2018 9:37 PM
The full load amps @ 460/3/60 will be 65 running amps and we recommend a 100 amp breaker.
