20 HP Quincy QGS 20S BM Rotary Screw Compressor World Latin America 60.8 CFM 208-230/460-Volt, 3-Phase

Model:
QGS 20S BM-3
Vendor Item Number:
4152021944
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Ships Direct
Rating:
100% of 100
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • VIDEOS
  • Product Q & A

DESCRIPTION

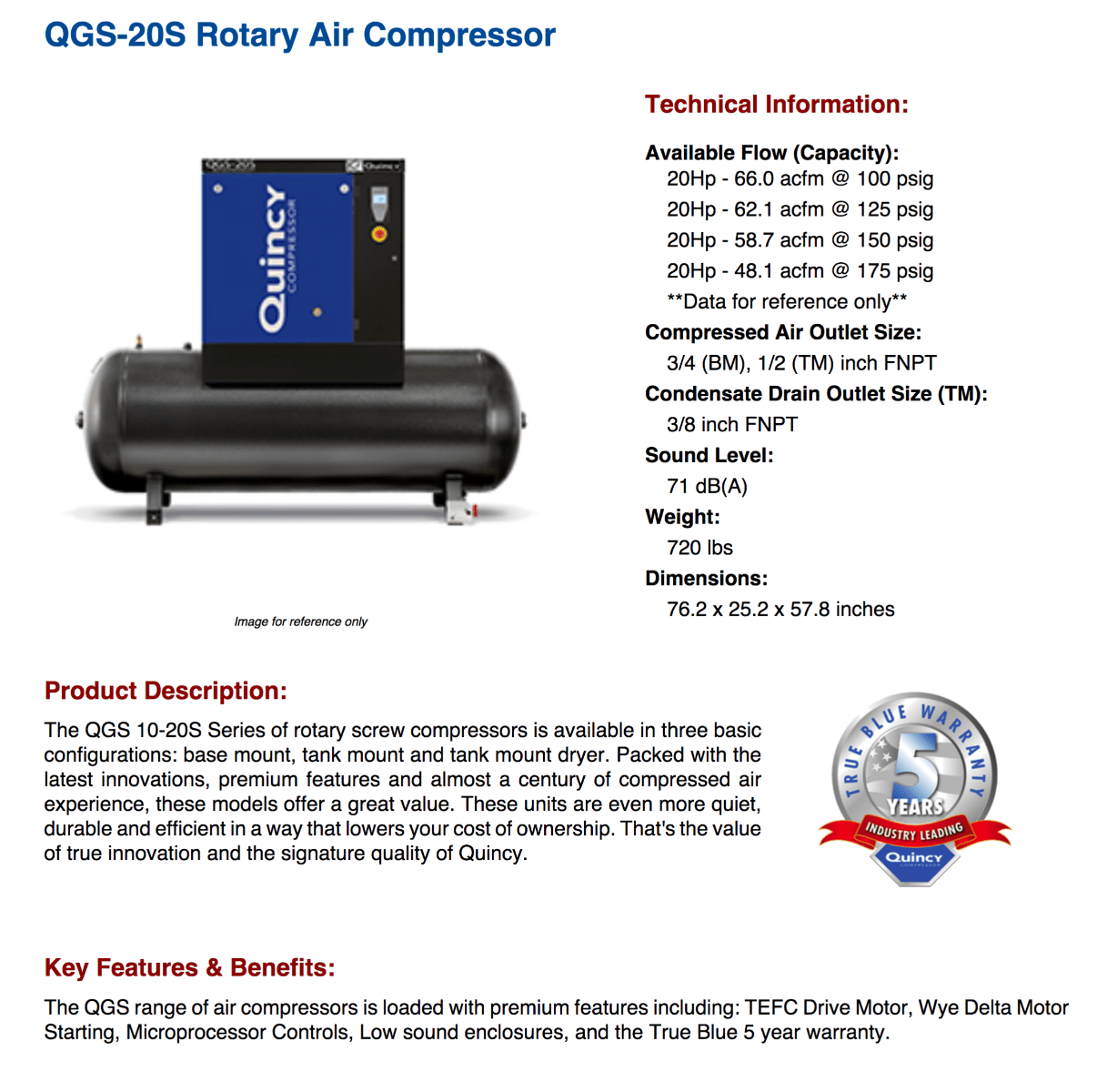

 Quincy 20 HP Rotary Screw Compressor World Latin America 62.1 CFM 120 Gallon Tank | QGS-20 17 TM

ROTARY SCREW TECHNOLOGY FOR EVERY APPLICATION
Quincy understands the critical nature of your compressed air system to maintain production. Quincy's QGS line of compressors help drive your profitability by lowering your total cost of ownership while providing you with the performance and reliability that you have come to expect from Quincy compressors. The QGS Compressor World Latin America has many of the features, benefits, and advantages of larger compressed air systems in a package that fits your application and at a price you can afford.

ARE YOU USING THE RIGHT TECHNOLOGY FOR YOUR APPLICATION?

With ease of service and reliability in mind, the Quincy QGS offers superior compressed air performance in a compact, modern design. With a continuous 100% duty cycle, this rotary screw compressor also operates without the elevated vibration and sound levels normally associated with typical piston compressors. A small footprint and lower noise levels mean increased installation flexibility, making the Quincy QGS ideal for most applications. And, with the optional receiver tank and integrated dryer, you will save valuable floor space and lower your cost of operation.

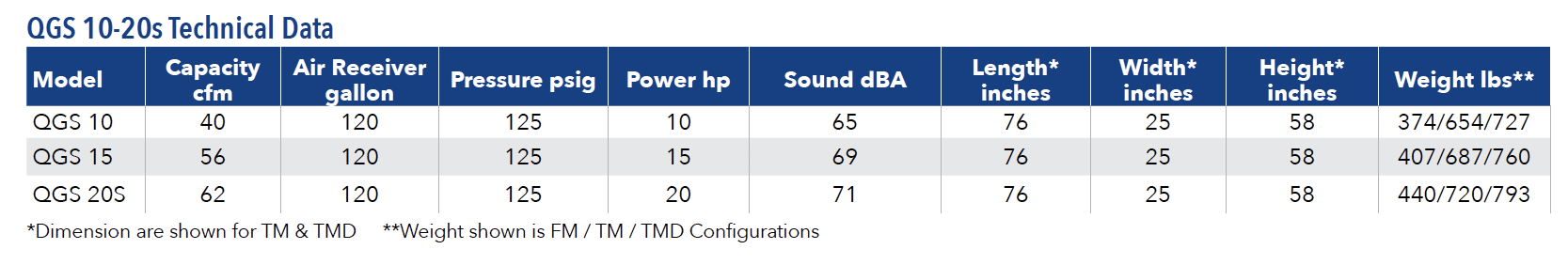

TECH DATA

  • Product Specification

    • CFM (Capacity)
      60.8 CFM
    • Controls
      Load/No Load Controls with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      20
    • Min Ambient Temperature
      35 F
    • Oil Capacity
      0.84 Gallon
    • Rated Duty Cycle
      100%
  • Overview & Technical Details

    • Electrical Starting
      Across the Line Starting
    • Fluid Type
      8,000 Hour Synthetic
    • Max Ambient Temperature
      104 F
    • Power Source/Type
      Electric
    • Sound Level dBA
      71 dB(A)
  • Connection

    • Connection NPT
      3/4"
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      33.7" x 26.6" x 38.6"
    • Height (inch)
      38.6"
    • Length (inch)
      33.7"
    • Width (inch)
      26.6
    • Weight (lbs)
      440.000000
  • Power Requirements

    • Standard Voltages
      208/230/460/3/60 (Tri Voltage)
  • Warranty

    • Optional Warranty
      5 Year Extended Warranty
    • Standard Warranty
      1 Year Parts & Labor, 3 Year Major Component Warranty
