Quincy 5 HP Oilless Scroll Compressor World Latin America 14.2 CFM @ 100 PSI, 208-230/460 Volt, 3-Phase | QOF-5

Model:
QOF-5
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Ships Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

Product Description:

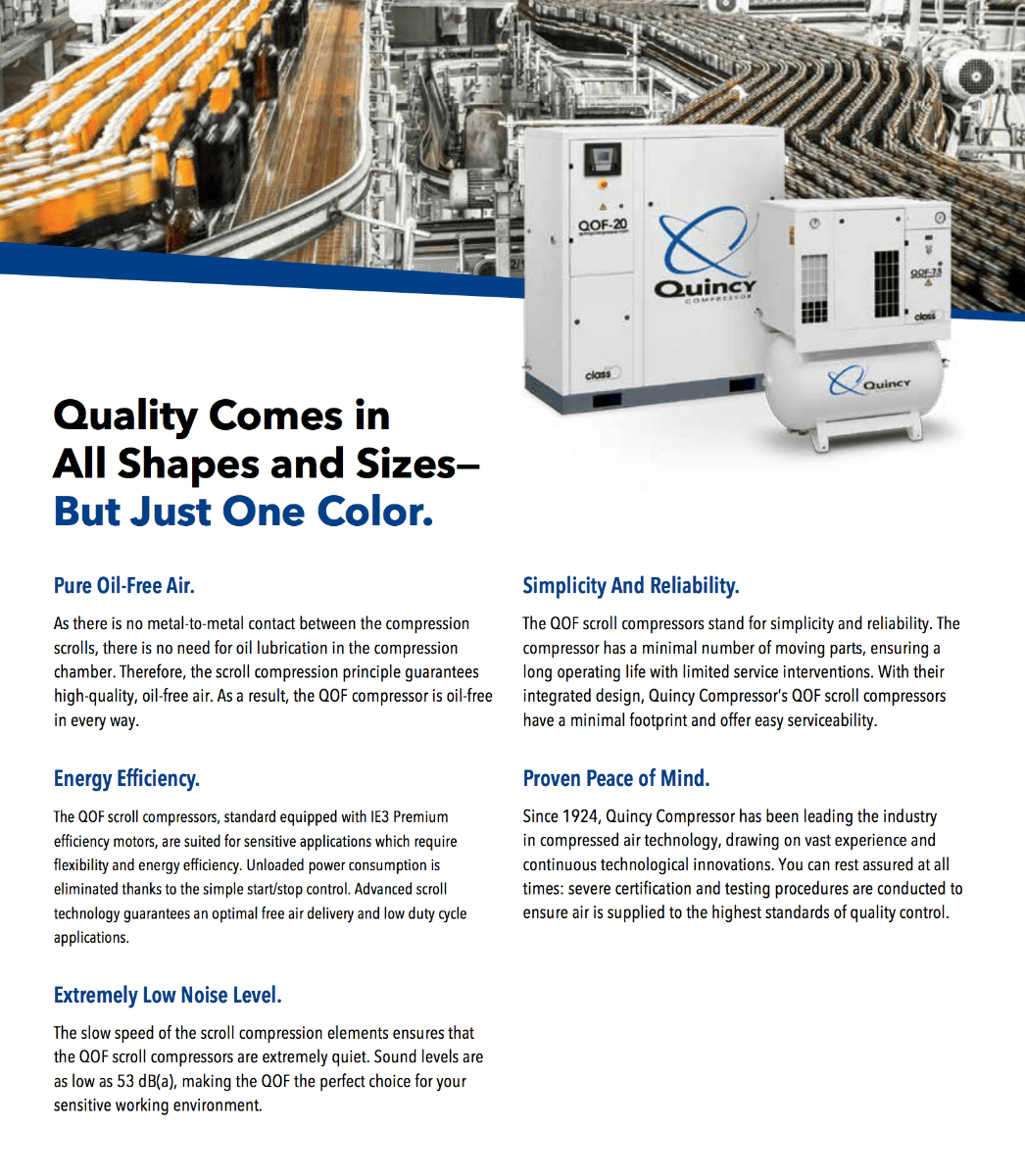

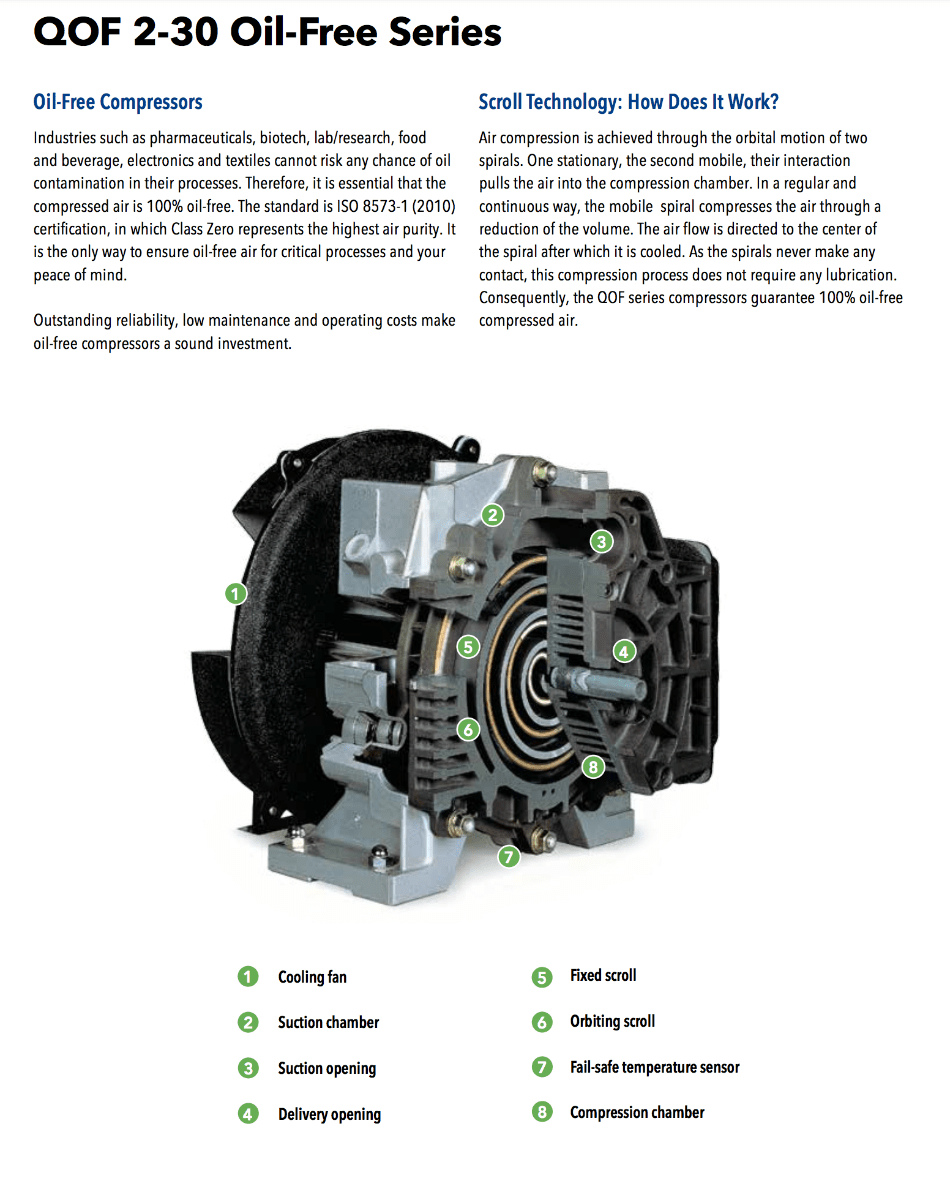

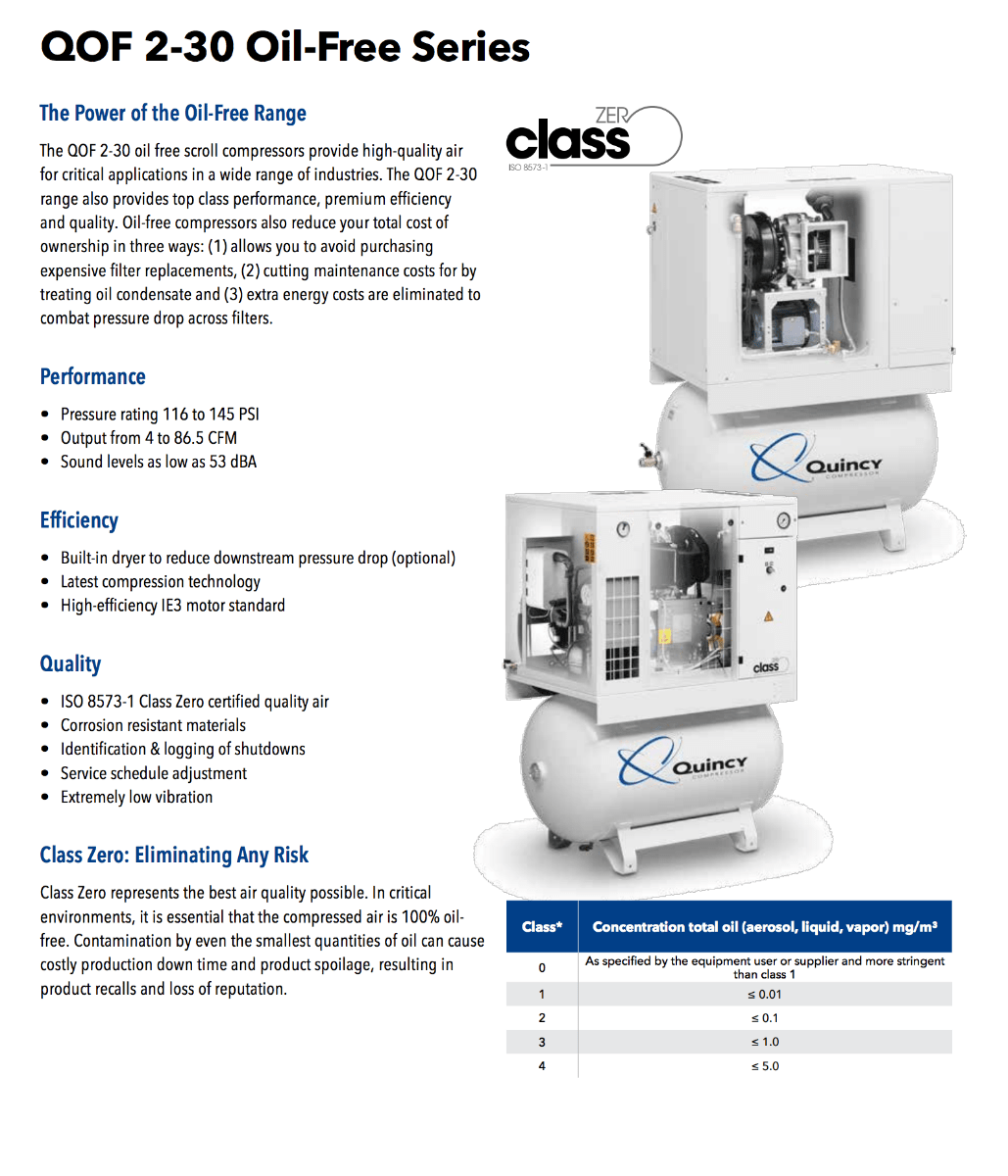

QOF oil-free scroll compressors provide high-quality compressed air for critical applications in a wide range of industries. Continuous investment in research and development has resulted in economical and ecological compressors. The QOF 2-30 range provides top class performance, premium efficiency and quality.

Key Features & Benefits:
What's more, with an oil-free compressor, you are also reducing your total cost of ownership in three ways: (1) by avoiding expensive filter replacements, (2) cutting maintenance costs for treating oil condensate and (3) the costs of extra energy needed to combat pressure drop across filters.

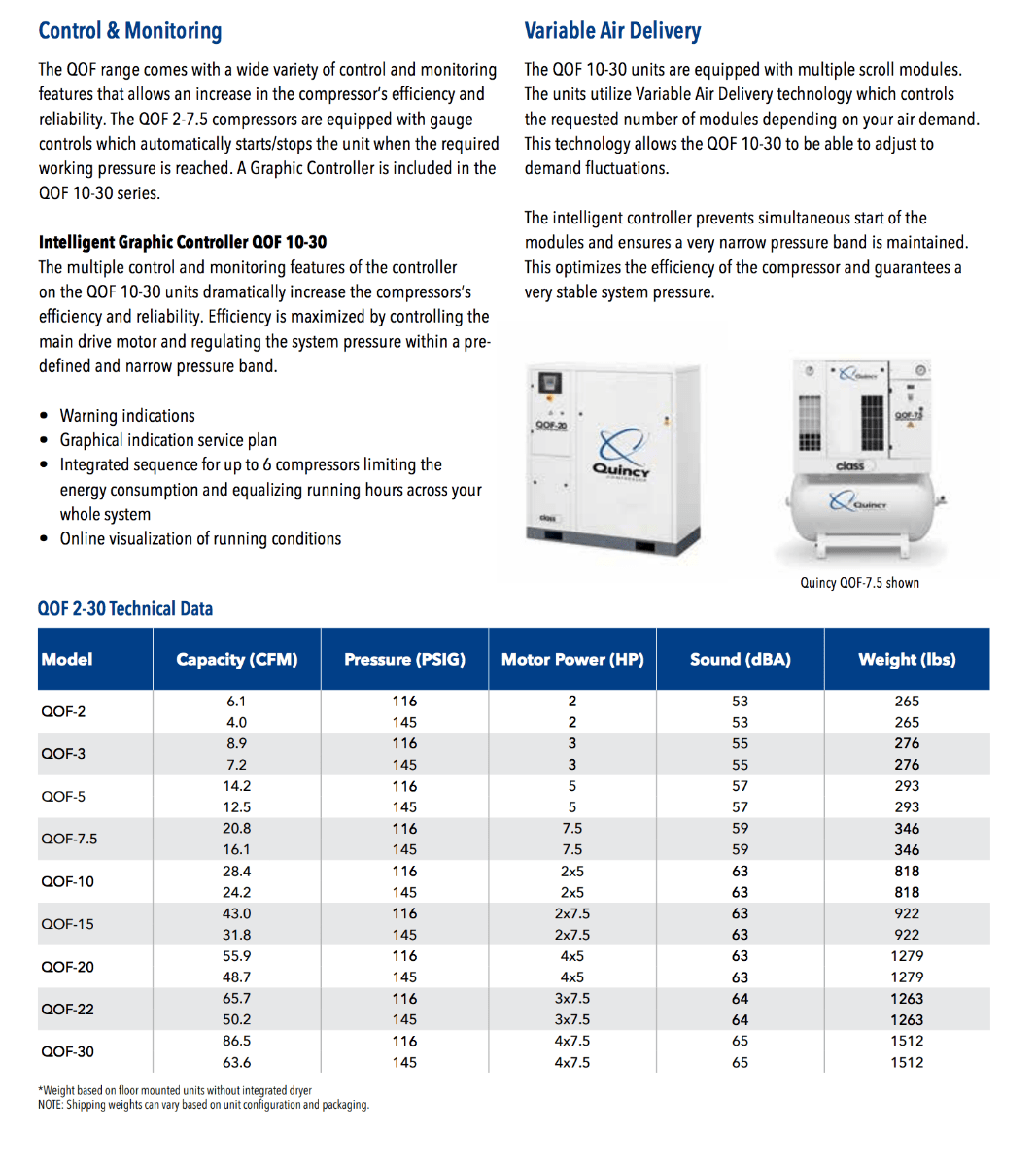

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      14.2 CFM @ 100 PSI
    • Compressor Style
      Oilless Scroll
    • Controls
      Start/Stop
    • Cooling System
      Air
    • Horsepower (HP)
      5 HP
    • Max Pressure (PSI)
      116 PSI
    • Pump Drive
      Belt
  • Overview & Technical Details

    • Sound Level dBA
      57 dB(A)
  • Additional Features

    • After Cooler
      Included
    • Magnetic Starter
      Mounted & Wired
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      30" x 26" x 33"
    • Weight (lbs)
      265.000000
  • Motor Data

    • Motor Type
      TEFC
  • Power Requirements

    • 208/3/60
      17.5 Full Load Running Amps
    • 230/240/3/60
      15.2 Full Load Running Amps
    • 460/480/3/60
      7.6 Full Load Running Amps
    • Standard Voltages
      208-230/460 Volt, 3-Phase
  • Warranty

    • Standard Warranty
      Factory Warranty
