DESCRIPTION

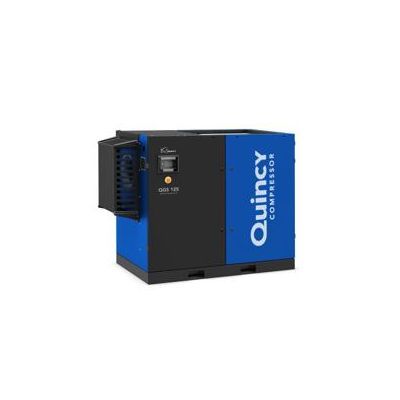

Quincy QGS-125, 125 HP Rotary Screw Compressor World Latin America, 533.4 CFM @ 125 PSI, 460/3/60


Product Description:

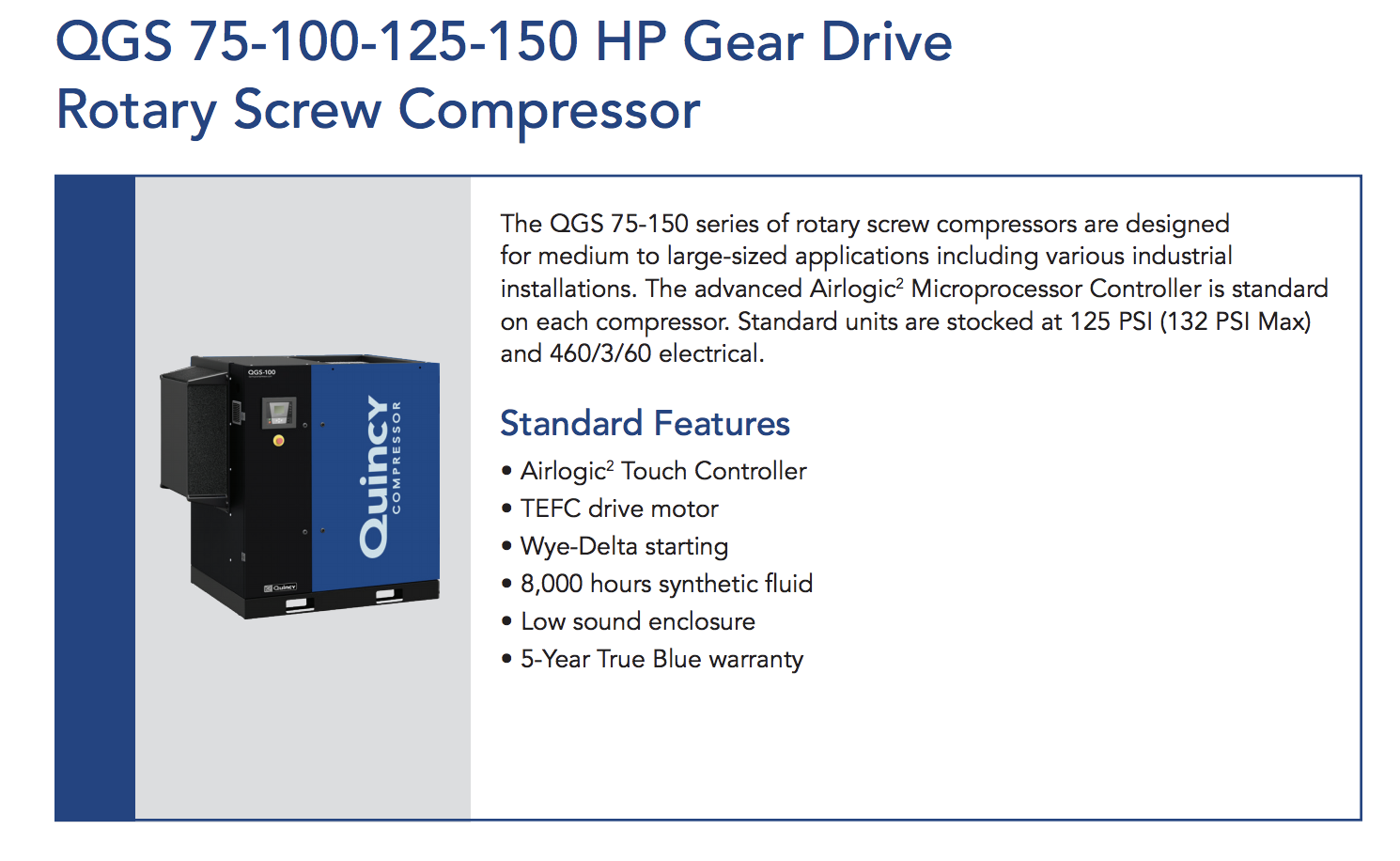

The QGS 75-150 Series of rotary screw compressors are designed for medium to large-sized applications including various industrial installations. The advanced Airlogic2 Microprocessor Controller is standard on each compressor.

Key Features & Benefits:
Standard equipment on this model includes a Nema Premium TEFC motor, wye-delta Starter, Low Sound Enclosure, High Dust Filter, Phase Monitor, Power Outage Restart and Q-Connect featuring cellular monitoring and alerts. These units are covered by Quincy's True Blue Warranty to ensure a long operating life and a low cost of ownership.

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 125 PSI
      533.4 CFM @ 125 PSI
    • Horsepower (HP)
      125 HP
    • Max Pressure (PSI)
      125 PSI

  • Overview & Technical Details

    • Max Ambient Temperature
      115 °F
    • Sound Level dBA
      72 dB(A)

  • Additional Features

    • After Cooler
      Included

  • Connection

    • Connection NPT
      2" NPT

  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      73.3" x 42" x 64.2"

  • Power Requirements

    • 460/480/3/60
      156 Full Load Running Amps
    • Standard Voltages
      460/3/60

  • Warranty

    • Standard Warranty
      Factory Warranty
