R-10D Champion Compressor World Latin America Pump with Flywheel Rated for 2 & 3 HP Motors

Model:
R-10D
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Compressor World Latin America Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 617-841-7812 within the Lower 48 States


"Over 100 Years of Experience"
Ships Direct
  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Q & A

DESCRIPTION

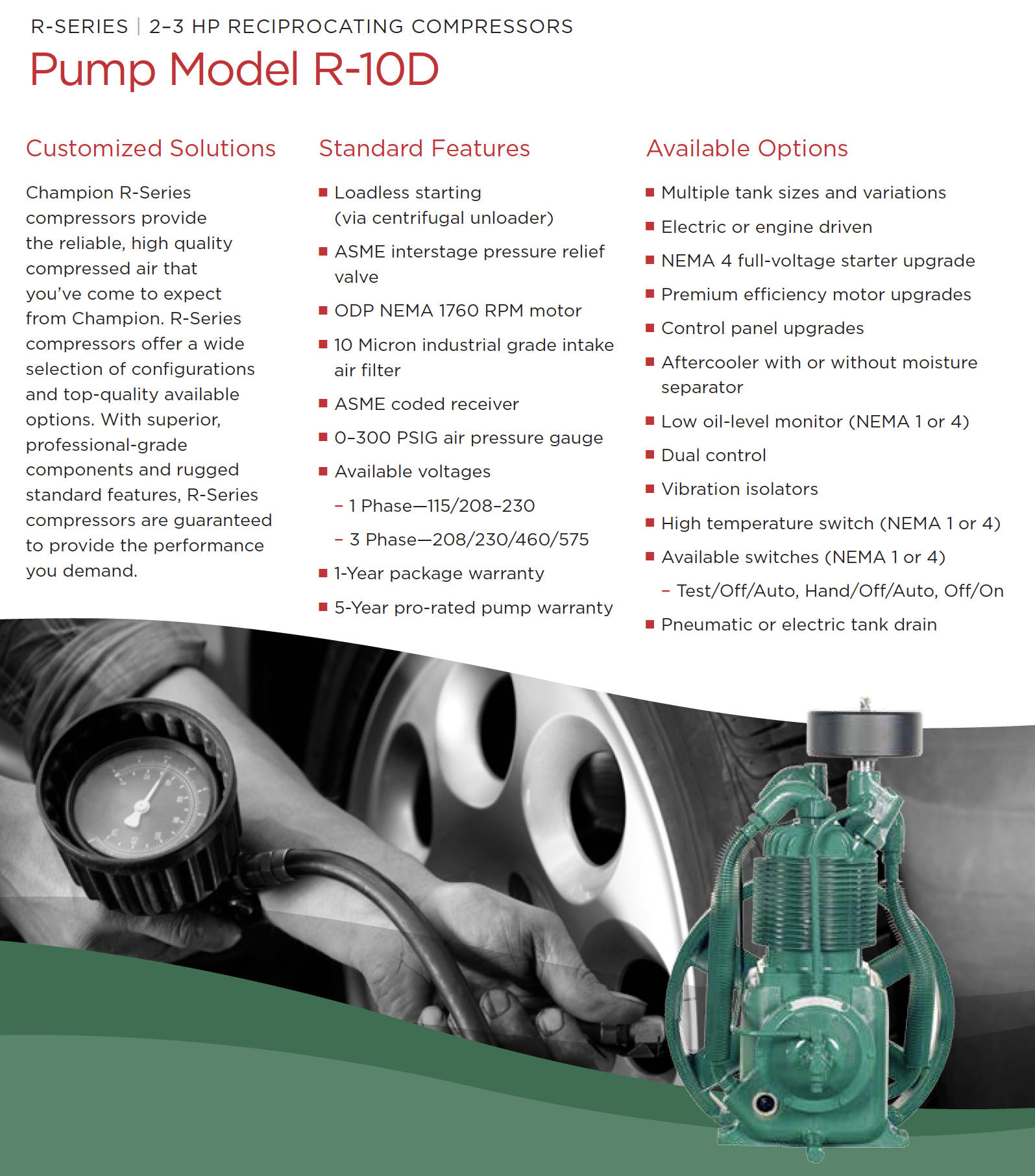

Splash-Lubricated R-Series

Loaded with rugged features, the R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.

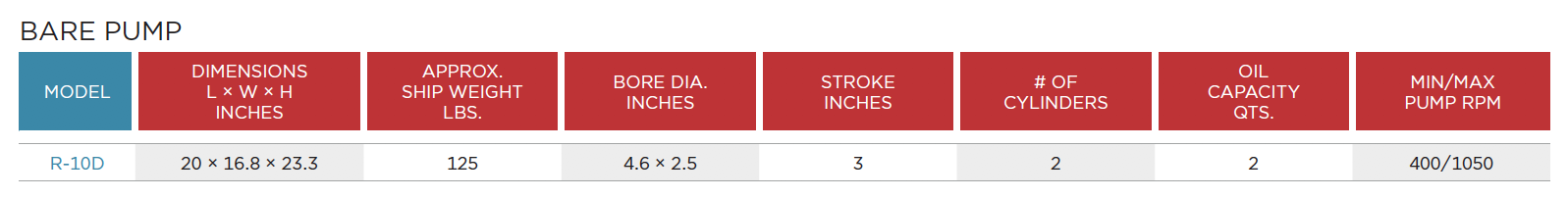

TECH DATA

  • Product Specification

    • Controls
      Start/Stop Operation
    • Cooling Type
      Air Cooled
    • Crank Diameter
      1 5/16"
    • Flywheel
      Included
    • Flywheel - Width
      2 1/2"
    • Flywheel Diameter
      16 1/2"
    • Flywheel Grooves
      2 V Belt
    • Horsepower (HP)
      1.5 - 2 HP
    • Pressure Rating
      175 PSI
    • Stage
      2 Stage
  • Dimensions & Weight

    • Base - Depth
      7 1/2"
    • Base - Width
      16 7/8"
    • Base to Crank CTR
      5 1/2"
    • Bolt Hole to Wheel (Max.)
      3
    • Boltdown - Depth
      5 3/4"
    • Boltdown - Width
      4 3/8"
    • Boltdown Hole Diameter
      15/32"
    • Boltdown to Edge
      7/8"
    • HP Exh. Opening Manifold
      3/4" Tubing
    • Overall Depth
      20 lbs
    • Overall Height
      23 1/4"
    • Overall Width
      16 7/8"
    • Shipping Weight
      125
    • Weight (lbs)
      125.000000
  • Warranty

    • Standard Warranty
      Factory Warranty
