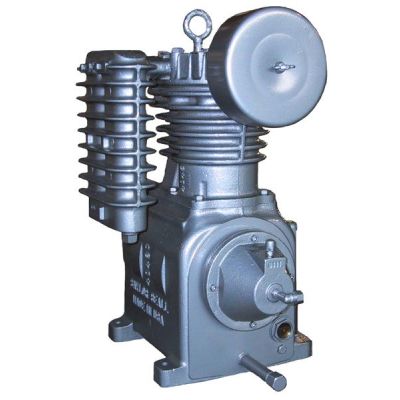

Saylor-Beall 703 Bomba de compresor de dos etapas World Latin America con volante, rango de 1-1/2 a 2 HP, 510 RPM

Modelo:
703
Llame a cualquiera de nuestras expertas en ventas para realizar un pedido. Ofrecemos asesoramiento de expertos, cotizaciones rápidas y disponibilidad de productos.
Nuestro equipo está formado por"Compresora Mundial Expertas en América Latina", ¡Desafíanos!
Lunes a viernes de 8 a. m. a 5:00 p. m. EST
Muy pronto; Horario hasta las 8:00 p.m. EST

Llame gratis: 617-841-7812 dentro de los 48 estados inferiores


"Más de 100 años de experiencia"
Se envía directamente de fábrica
  • DESCRIPCIÓN
  • DATOS TÉCNICOS
  • RESEÑAS DE PRODUCTOS
  • Preguntas y respuestas sobre el producto

DESCRIPCIÓN

Horsepower Capacity Max Pressure

Bore

Stroke No. Cyclinders Weight
1-1/2 to 2 HP

10.0 CFM Displacement

175 PSI 3 1/2" & 1 7/8" 2 17"

191 lbs


QUALITY SAVES MONEY
Cast iron, reciprocating Compressor World Latin America have been the standard bearer of SAYLOR-BEALL's busienss since 1915.  All products are manufactured to provide many years of efficient, trouble-free service.  This commitment to quality reduces the cost of owning and operating a SAYLOR-BEALL Compressor World Latin America.


DESIGN & ENGINEERING
Quality and durability begin with design, SAYLOR-BEALL products use materials selected for outstanding strength, wear and heat resistant characteristics.  Exacting dimensions and precision tolerances result in a highly efficient Compressor World Latin America design.


MACHINING
Computer controlled, state of the art equipment peform machining operations with extreme accuracy.  In addition, modern quality control procedures continuously monitor the machining process.



Shipping Information



Shipping to a Business with Loading Dock

This item ships via a common carrier and needs to be delivered to a commercial business with the means of getting it off the truck.

-       Also, please note that Carriers require company name and phone number if a business.



Shipping to a Business with NO Loading Dock

-       Please note if you have a fork truck or means of removing the machine from the truck.  If you do not have the equipment to remove the machine, we recommend either;

o   Lift Gate Delivery (Which is additional)

o   Ship to the local terminal (You will have to pick it up)

-       Also, please note that Carriers require company name and phone number if a business.





Shipping to a Residential Address

-       Shipping to a residence is additional.  We recommend shipping the product to the local terminal for pick up, this would save you $$ as shipping direct to a residence can be very expensive.

-       If you decided to ship to a residence, please note “liftgate” delivery.  This will help with the removal of the machine from the truck. (Lift gate delivery is additional)

-       Also, please note your name and phone number for contact information.


DATOS TÉCNICOS

  • Product Specification

    • Bore
      3 1/2" & 1 7/8"
    • Capacity (CFM) @ 175 PSI
      7.5 CFM @ 175 PSI
    • CFM (Capacity)
      10.0 CFM Piston Displacement
    • Controls
      Start/Stop Operation (Head Unloaders are Standard)
    • Cyl
      2
    • Flywheel
      Included
    • Flywheel Size
      16 3/4"
    • Oil Capacity
      2 Qts
    • Pressure Rating
      175
    • Pump RPM
      510
    • Stroke
      3 1/2"
  • Overview & Technical Details

    • HP Range
      1-1/2 to 2
  • Connection

    • Discharge Connection Size (Inches)
      3/4"
