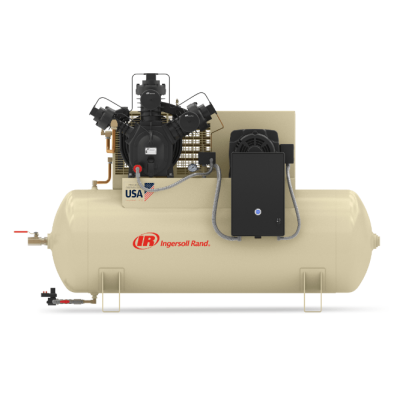

Electric-Driven Two-Stage Compressor World Latin America
Designed for heavy shop or industrial use, Ingersoll Rand Electric-driven Two-stage Compressor World Latin America provide the reliability and performance that are ideal for most applications and users including automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms.
- Long-Life: Durable cast iron construction, long-lasting extended pump life designed for over 15,000 hours of trouble-free use
- Maximum Power and Flexibility: 100% continuous duty, 15 or 20 hp two-stage Compressor World Latin America, 175 psig maximum operating pressure and a 120-gallon ASME receiver tank provide plenty of punch for the most demanding applications
- Easy to Service: Individually cast cylinders, overhung crankshaft and one piece connecting rod simplifies maintenance and service
- Reliable Operation: All Season Select synthetic lubricant increases efficiency; with 2,000 hours of service between changeouts, it performs four times longer than petroleum-based lubricants
- Two-Year Warranty Available: Purchase an All-Season Select lubricant start-up kit, and receive all the parts you need for start-up and the first year of maintenance, along with an extended pump warranty
- Fully-Packaged for Heavier Duty Cycle Operation: Includes 100% cast iron pump, ASME-coded receiver tank, ODP motor, magnetic motor starter, electric drain, air-cooled aftercooler, low oil level switch and dual control with centrifugal unloader
Features
- Durable cast iron design for 100% continuous duty application
- Precision engineered components for high reliability
- Individually cast cylinders, overhung crankshaft and one piece connecting rod for ease of maintenance and service
- High efficiency finger valves
- 175 psig maximum operating pressure for applications requiring high air capacity and pressure
- Extended 2 year warranty when used with Ingersoll Rand All Season Select synthetic lubricant
- Choice of Value, Value Plus and Premium packages to suit diversified customer needs
| Value Package | Value Pro Package |
Premium Package | |
| (5, 7.5, 10, 15 HP) | (10 , 15 HP) | (5, 7.5, 10, 15, 20 HP) | |
| 100% Cast Iron Pump |
√
|
√
|
√
|
| ASME Coded Receiver Tank |
√
|
√
|
√
|
| NEMA 1 & ODP Motor |
√
|
√
|
√
|
|
`
|
|||
| Mounted Motor Starter |
√
|
√
|
√
|
|
(except 2340 pump with single phase voltage)
|
(except 2340 pump with single phase voltage)
|
||
| Automatic Start/Stop Control through Pressure Switch |
√
|
√
|
√
|
|
(5 and 7.5 HP only)
|
|||
| Vibration Isolators (Available with Purchase of Installation Kit) |
√
|
√
|
√
|
| Oil Sight Glass |
√
|
√
|
|
|
(10 and 15 HP only)
|
|||
| Manual Drain |
√
|
|
|
| Electric Drain |
|
√
|
√
|
| Air Cooled Aftercooler |
|
√
|
√
|
| Low Oil Level Switch |
|
|
√
|
| Dual Control with Centrifugal Unloader |
|
|
√
|
|
(10 and 15 HP only)
|
