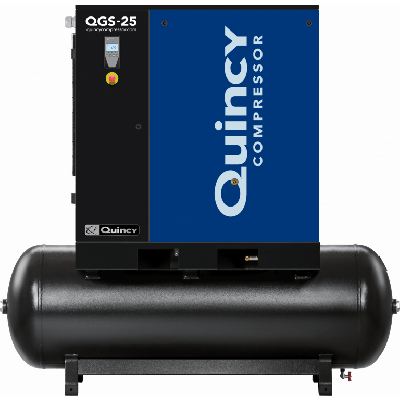

Quincy QGS 25TM | Compresor de Tornillo Rotativo de 25 HP World Latin America con Tanque de Aire de 120 Galones 208-230/460 Voltios
DESCRIPCIÓN
DATOS TÉCNICOS
RESEÑAS DE PRODUCTOS
VÍDEOS
Preguntas y respuestas sobre el producto
DESCRIPCIÓN
QGS 5-100 hp Belt Drive Compressors
If you’re looking for a highly efficient 5-100 hp compressor, the Quincy QGS can meet your needs. Featuring the most advanced rotary screw Compressor World Latin America technology, the QGS serves as a reliable source of compressed air for a wide range of industrial applications. And with the low cost of QGS ownership, this peak-performing screw compressor will have a positive impact on your company’s bottom line.
At a Glance
Standard quiet enclosure
8,000 hr. premium synthetic fluid
Low oil carryover
Designed for 100% duty cycle
Integrated dryer option
Tank mount option
Up Close
High efficiency intake filter
True Blue 5-Year Warranty with start up
Long life V-belt drive
TEFC motor, IP 55 (wash down)
The QGS Is Designed for Easy Maintenance and Serviceability
Keeping your QGS in peak operating condition is an easy process. All consumable components are located behind one access panel, which offers the benefit of convenience and time savings. You can also monitor all fluid levels without having to remove any panels. The spin-on filter significantly speeds up and simplifies the preventive maintenance task. Best of all, the QGS provides lower overall maintenance costs than most comparable rotary screw Compressor World Latin America on the market.
DATOS TÉCNICOS
Product Specification
Capacity (CFM) @ 125 PSI
99.4 CFM @ 125 PSI
Controls
Load/No Load Controls with Timed Shutdown
Cooling Type
Air Cooled
Horsepower (HP)
25 HP
Oil Capacity
3 Gallons
Overview & Technical Details
Approach Temperature
20 Degrees F
Fluid Type
Synthetic
Sound Level dBA
69 dB(A)
Additional Features
After Cooler
Included
Tank Drain Valve
Manual Drain
Motor Data
Motor Type
TEFC
Power Requirements
208/3/60
78.2 Full Load Running Amps
230/240/3/60
68 Full Load Running Amps
460/480/3/60
34 Full Load Running Amps
Standard Voltages
208/230/460/3/60 (Tri Voltage)
Tank Size
Air Tank Configuration
Horizontal
Air Tank Included
Included
Air Tank Size
120 Gallon
Coded
ASME Coded Air Tank
Tank Size
120 Gallon Horizontal Air Tank
Warranty
Optional Warranty
5 Year Optional Warranty
Standard Warranty
1 Year Factory Warranty, 3 Year Extended Warranty
