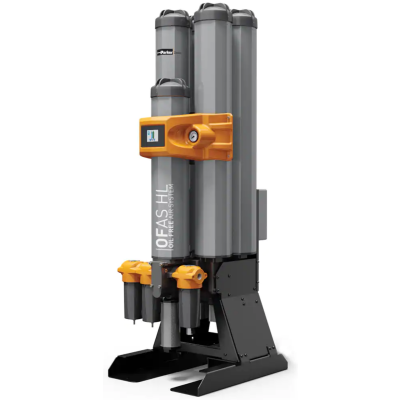

Parker makes the OFAS HL oil-free air system, complete with OIL-X filtration. Businesses can avoid all compressed-air contamination problems by installing these systems
This oil-free air system uses innovative engineering and technology, blending sophisticated OIL-X filtration with an optimized drying system and fitted with a third adsorbent column for oil-vapour removal. Parker has designed this product to deliver constant high performance over extended periods, so users stay confident in their compressed-air quality.
Medium flow compressed air treatment systems with oil vapour removal, providing ISO 8573-1 Class 0 air at flow rates up to 300 m³/hr @ 7 barg. Suitable for all industrial compressed air applications.
- Energy-saving technology. The OFAS HL automatically adapts dryer operation to ambient inlet conditions and compressed-air demand, to ensure optimum energy consumption and full use of desiccant material.
- HMI display screen. Large-screen display showing clear, practical real-time data.
- High-strength desiccant. Cartridges filled with high-strength desiccant with a five-year lifetime, for consistent drying, regeneration, and dew point.
- Pre-mounted filters. OIL-X filters engineered for ISO 8573-1 performance.
- Threaded top end cap. Enables straightforward replacement of desiccant cartridges.
- Purge setting. Users can set purge air at minimum operating pressure without specialist tools.
- Corrosion-protected column. Ten-year guarantee for long lifespan.
- Full-bore internal flow paths. With optimized flow management, for lower pressure drop.
- Full-bore cylinder valve system. Low-pressure-loss valves offer full air flow and minimal back pressure, while robust cylinders extend service intervals.
- Base plate. Designed for pallet trucks. Enables easy, time-saving installation.
In addition, the OFAS HL offers a pressure dew point of -40/-70 degrees Celsius to control microbiological growth, along with easy, flexible installation. With dry air comes zero corrosion, and the unit also boosts production efficiency while reducing maintenance costs and downtime.
