DESCRIPCIÓN

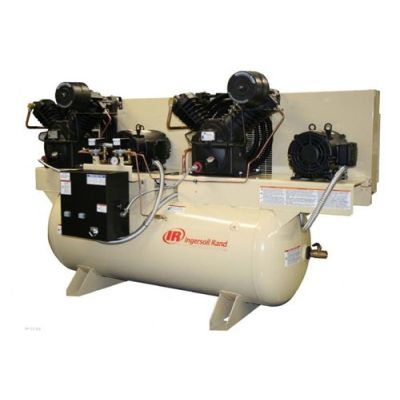

Type 30, Two Stage Duplex Cast-Iron Compressor Packages
Each duplex "value" package includes two (2) bare compressors with two (2) ODP motors mountedon a single horizontal A.S.M.E. coded receiver tank. Standard controls are automatic start/stop with unloading pressure switch. These packages include an E-Series alternator mounted and wired, in a NEMA-1 enclosure. Panel is both U.L. and CSA approved. Alternator includes (2) duty rated starters with overload protection, (1) control relay for alternation, (1) on/off switch, fused control circuit, (2) reset buttons through the cover. Package features a totally enclosed belt guard, NO after cooler, and manual tank drain. Standard voltage is 230/3/60 with optional voltages available to meet specific needs. Both the 10 & 15 HP duplex packages feature an oil sight glass on the pump for verification of proper oil level. Duplex valve packages offer limited options including install kit, start up kit and electronic automatic tank drain with power cord; no other options are available with these packages.
DATOS TÉCNICOS
