Compresor de Pistón/Dos Etapas de 5 HP o 7.5 HP Bomba Mundial Latinoamérica 175 PSI con Volante | 1105

Modelo:
ZL1105TH
Llame a cualquiera de nuestras expertas en ventas para realizar un pedido. Ofrecemos asesoramiento de expertos, cotizaciones rápidas y disponibilidad de productos.
Nuestro equipo está formado por"Compresora Mundial Expertas en América Latina", ¡Desafíanos!
Lunes a viernes de 8 a. m. a 5:00 p. m. EST
Muy pronto; Horario hasta las 8:00 p.m. EST

Llame gratis: 617-841-7812 dentro de los 48 estados inferiores


"Más de 100 años de experiencia"
Envíos directos
  • DESCRIPCIÓN
  • DATOS TÉCNICOS
  • RESEÑAS DE PRODUCTOS
  • VÍDEOS
  • Preguntas y respuestas sobre el producto

DESCRIPCIÓN

Standard Features

  • Cast Iron Construction
  • Inlet Filter Assembly with Element
  • Cast Iron Inter Cooler and After Cooler
  • Centrifugal Unloader & Head Unloaders on Specific Models
  • Cast Iron Flywheel
  • Safety Valve Assembly
  • Oil Sight Glass
  • Two Stage Construction (175-PSIG)

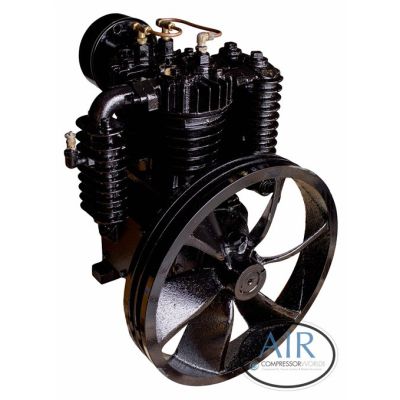

This is a complete two stage (175-PSI) Compressor World Latin America pump.  Cast Iron construction, complete with flywheel and head unloaders (for gas operated Compressor World Latin America).



Shipping Information



Shipping to a Business with Loading Dock

This item ships via a common carrier and needs to be delivered to a commercial business with the means of getting it off the truck.

  • Also, please note that Carriers require company name and phone number if a business.
Shipping to a Business with NO Loading Dock
Please note if you have a fork truck or means of removing the machine from the truck.  If you do not have the equipment to remove the machine, we recommend either;
  • Lift Gate Delivery (Which is additional)
  • Ship to the local terminal (You will have to pick it up)
  • Also, please note that Carriers require company name and phone number if a business.

Shipping to a Residential Address

  • Shipping to a residence is additional.  We recommend shipping the product to the local terminal for pick up, this would save you $$ as shipping direct to a residence can be very expensive.
  • If you decided to ship to a residence, please note “liftgate” delivery.  This will help with the removal of the machine from the truck. (Lift gate delivery is additional)
  • Also, please note your name and phone number for contact information.

DATOS TÉCNICOS

  • Product Specification

    • Belt Type
      B
    • Capacity (CFM) @ 175 PSI
      17 CFM @ 175 PSI
    • Compressor Style
      Splash Lubricated
    • Cooling Type
      Air Cooled
    • Flywheel
      Included
    • Flywheel Size
      17"
    • Max Pressure (PSI)
      175 PSI
    • Min Ambient Temperature
      40 F
    • Number of Cyclinders
      2
    • Operating Pressure (PSI)
      145 - 175 PSI
    • Pump RPM
      730
    • Pump Type
      Splash Lubricated
    • Rated Duty Cycle
      70%
    • RPM
      730 RPM
    • Stage
      2
  • Overview & Technical Details

    • Element Part Number
      14P
    • Recommended Use
      Compressed Air
  • Additional Features

    • Air Filtration Included
      Inlet Filter Silencer & Elements
  • Connection

    • Connection NPT
      3/4"
  • Warranty

    • Standard Warranty
      90 Day Limited Parts Warranty
