Overview
Coaire is a world class manufacturer of oil-less scroll and piston compressors. Our compressors and systems are built in an ISO accredited facility. We build on our compressor knowledge to bring you the best in scroll enclosure designs. Our “S” series scroll enclosures are available from 3 through 50 horsepower to ensure we have the system to meet your high demands and expectations.
Features and Benefits
- Oil-less scroll Compressor World Latin America
• Special internal coating to maximize performance
• Non corrosive after cooler assembly – will not rust - High-quality cabinetry with steel-insulated panels and extruded aluminum framework on a rugged steel base
- Quiet operation as low as 49 dBA
- Across-the-line magnetic contactor (UL listed)
- Single or 3-phase 208-230, 208-230/460
- Air line shut off valve
- Individual compressors can be isolated for maintenance
- Microprocessor controls

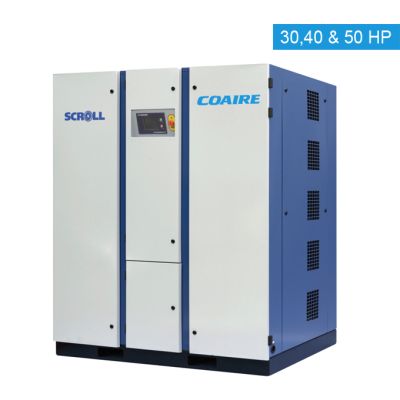

“S” Series - Enclosed Scroll Compressors
Our “S” series scroll enclosure systems are perfect for applications that require oil-less compressed air, reliability is a high priority, and where an extremely quiet operation is of the utmost importance. Coaire leads the industry in innovation and design; from our pivot belt tensioner to our 10,000 hour tip seal replacement and bearing lubrication, to our state of the art controls, we are always striving to bring you the best in compressed air engineering.
In addition to the “S” series, Coaire also offers an “M” series with a built in air receiver, a “D” series with a built in refrigerated air dryer, base mounted or bare air end scrolls, as well as oil-less piston compressor air ends.
Controls
- Start / Stop control buttons
- Microprocessor logic to cascade compressors as needed
- 'Power On' and 'Run' light
- High air temp shutdown
- Over current shutdown
- Pressure gauge and hour meter – digital
- Discharge temperature reading – digital
- High discharge temperature shutdown
- Alarm indication light (error codes)
- Time indication for alarm indication
- Dry contact for remote alarm
Soft-touch, microprocessor, control panel
- Start / Stop control buttons
- Microprocessor logic to cascade compressors as needed
- 'Power On' and 'Run' light
- High air temp shutdown
- Over current shutdown
- Pressure gauge and hour meter – digital
- Discharge temperature reading – digital
- High discharge temperature shutdown
- Alarm indication light (error codes)
- Time indication for alarm indication
- Dry contact for remote alarm
