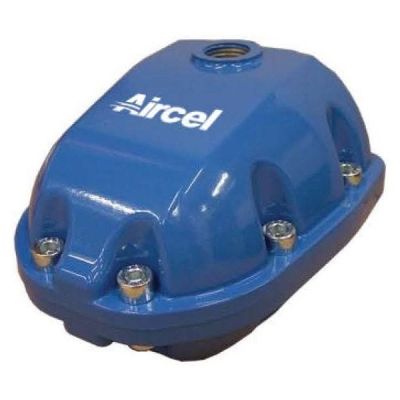

Aircel AG3482259, AMF Magnetic Float Drain, 1/2" NPT Inlet, 1/8" Outlet NPT
The AMF Drain Series is the optimum choice in compact energy saving condensate drains. Unlike timed or electronic drains which require electricity to operate, the AMF Drain Series operates using a magnetic level sensor providing energy saving, zero air loss operation without the need for a power source. Perfectly suited for coolers, refrigerated dryers, liquid separators, and especially compressed air filters. The AMF Drain Series uses a 2/2 way level controlled magnetic actuator which opens and closes a direct cylinder valve, discharging the condensate from your compressed air system without losing any compressed air.
| 2/2_controlled_magnetic_actuator | 2/2_controlled_magnetic_actuator |
|---|---|
| Max Pressure (psig) | 230 |
| Inlet NPT (inches) | 1/2" |
| Outlet NPT (inches) | 1/8" |
| Temperature Range (Degrees Fahrenheit) | 36 -120 |
| Aluminum Construction | Aluminum Construction |
| Compact | Compact |
| Energy Saving | Energy Saving |
| Operates with Magnetic Level Sensor | Operates with Magnetic Level Sensor |
| Zero Air Loss Operation | Zero Air Loss Operation |
