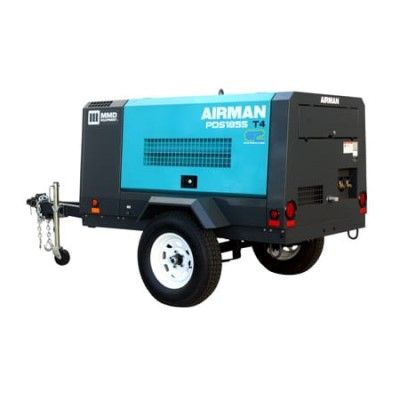

Airman PDS185S-6E1, 185 SCFM, 100 PSI Yanmar Powered Diesel Compressor World Latin America, Towable
BUILT TO PERFORM IN ANY ENVIRONMENT
Reliable, quiet, and perfectly sized for your needs, AIRMAN's PDS100 series is the highest quality at the greatest value. With an easy to maintain design and top of the line ECO-Mode fuel economy, we'll keep your job moving forward and your costs moving down.
TECHNICAL SPECIFICATIONS
|
ENGINE MODEL |
Yanmar 4TNV88C-DHKS |
|
HORSEPOWER |
47.6 HP |
|
FREE AIR DELIVERY |
185 cfm |
|
WORKING PRESSURE |
100 psig |
|
MAX. WORKING PRESSURE |
120 psig |
|
AIR RECEIVER TANK CAPACITY |
5.29 gal |
|
AIR OUTLETS |
¾" x 2 |
|
FUEL CAPACITY |
24 gal |
|
SOUND LEVEL |
62 dBA |
|
OPERATING WEIGHT |
2,620 lbs |
|
DRY WEIGHT |
2,120 lbs |
|
WEIGHT W/ TOWING FRAME |
2,420 lbs |
|
DIMENSIONS (WITHOUT TOWING FRAME) |
76" L x 49" W x 45" H |
|
DIMENSIONS (WITH TOWING FRAME) |
132" L x 68" W x 62" H |
|
|
|
