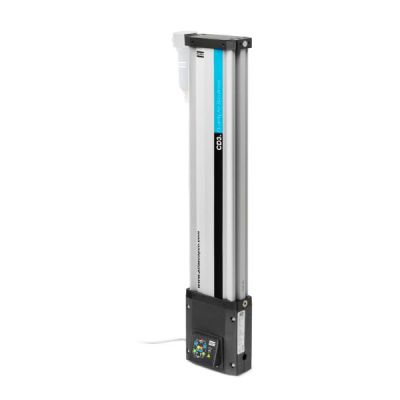

Atlas Copco, CD+3, 6.4 SCFM@100psi, 160psi(g) Secador de aire desecante regenerativo sin calor, punto de rocío de -40 grados F, 115/1/60, tamaño de conexión de 1/4" (NPT), con control de temporizador | 8102361767

Atlas Copco, CD+3, 6.4 SCFM@100psi, 160psi(g) Heatless Regenerative Desiccant Air Dryer, -40 Deg.F Dew Point, 115/1/60, 1/4" Connection Size (NPT), with Timer Control | 8102361767

CD 1+-22+ - The compact solution

High-quality components designed for low pressure drop and increased reliability provide fail-safe operation.

Filled with high-performance molecular sieves to allow for various pressure dewpoints (-40 °C/-40 °F and -70 °C/-100 °F). Overfilled cartridges protect against desiccant aging and overflow peaks. Integrated after-filters ensure fast and clean maintenance.

Multi-port inlet and outlet provide easy connection to the air system. The dryer can be installed vertically or horizontally.

Integrated silencers minimize noise.

Full electronic controller with purge saver
function. The sophisticated electrical panel
is IP65-protected against water and dust.

Features and Benefits

Enduring performance
• Non-return valves and purge cavities are built into the
polycarbonate cartridges.
• Each desiccant cartridge includes an integrated
after-filter to save space, simplify installation and
decrease the risk of leaks.
• The dryer can perform in working pressures up to
16 bar(g)/232 psig and temperatures up to 50 °C/122 °F.

Energy efficiency and savings
• Low pressure drop across the whole range.
• Purge saver function is included as standard.
• Adjustable purge, available as an option, matches
purge air consumption to the actual working
conditions.

Easy operation
• Controller shows the dryer/cycle status and automatic
fault diagnosis.
• No need to disconnect the dryer from the compressed
air network for servicing.
• The inlet and outlet can be reversed. The dryer can be
operated remotely.
