Secador desecante sin calor Atlas Copco | CD195 -40F 115V NPT | 8102334243

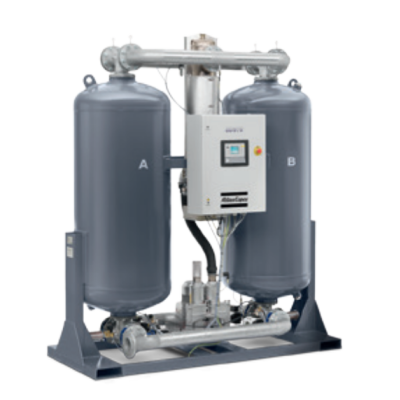

Atlas Copco Heatless Desiccant Dryer | CD195 -40F 115V NPT | 8102334243

CD 25-260 - Competitive investment & superb reliability

Reliable operation
Designed to perform reliably at continuous operation or 100% airflow, whereas most dryers on the market are only built to work at 70% to 80%. This includes a constant pressure dewpoint of -20 °C/-5 °F or -40 °C/-40 °F as standard. The pressure dewpoint can also be adjusted for
seasonal or application changes.

Unique manifold/valve design
• Large pipe diameter minimizes pressure drop for advanced energy savings.
• Electronically-operated 3/2 valve reduces risk of breakdowns and
offers reliable control during airflow fluctuations. With this new design, vessel switching operates unfailingly even in rough conditions.
• Service openings ensure easy service of the moving parts of the
valve system.
• Clever strainer design minimizes pressure drop, regeneration times and energy consumption. Its “swirl” technology ensures optimal distribution of the airflow and decreases wear of the desiccant.

Advanced control and monitoring system
• 4-line display in 23 languages.
• Service alarms and general alarm relay.
• Monitors all parameters to ensure maximum reliability.
• Allows for synchronization with the compressor, turning on/off when the compressor does.
• Service indications (4,000, 8,000 and 40,000 hours) and warnings.
• Optional pressure dewpoint sensor for Dewpoint Dependent Switching.

Service and maintenance-friendly
• Desiccant bags allow for quick replacement without spilling adsorbent
material.
• A spring covers the bags to prevent damage by desiccant moving due to pressure pulsations.

Attached filters
• A durable PD pre-filter prevents oil contamination to increase desiccant lifetime and is included for installation in the air piping.
• A DDp after-filter protects the airnet from desiccant dust and network
contamination and is included for installation in the air piping.
• To be installed in the air piping.
• Easy to assemble and maintain.

Nozzle purge set
Offers flexibility in optimizing regeneration pressure for lowest purge air consumption. Standard is 7 bar; 4 and 10-bar nozzles come as separate parts.

Advanced options
• Pressure dewpoint sensor required for Dewpoint Dependent Switching.
• Wall mounting kit.
