Champion 10 HP Compressor World Latin America Pistón, dos etapas, 34.8 ACFM @ 175 PSI, tanque de aire vertical de 80 galones, 230 voltios, trifásico | VR10-8

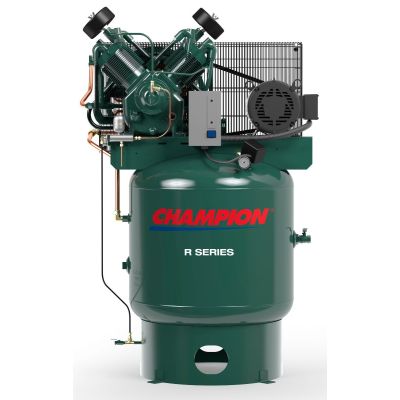

Champion 10 HP Compressor World Latin America Piston, Two Stage, 34.8 ACFM @ 175 PSI, 80 Gallon Vertical Air Tank, 230-Volt, 3-Phase | VR10-8

Loaded with rugged features, the Champion R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.

1 Multi-finned cylinders - Cooler operating temperatures result in longer life and consistent performance over time.

2 Integral cylinder/head - Gasketless design eliminates the possibility of blown head gaskets for trouble-free operation.

3 Balanced pistons - Aluminum alloy first-stage piston is weightmatched to the cast iron second-stage piston, ensuring proper balance.

4 Piston rings - Two compression rings and one oil control ring provide excellent oil control, and high efficiency air delivery.

5 Lightweight connecting rods - High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision-bored crankpin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.

6 Pressure relief valves- Located in interstage and discharge.

7 Intercoolers - Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.

8 Optimized cooling fan/flywheel - Precision balanced flywheel has fan blades for optimum compressor cooling and life.

9 Reliable, high-flow valves - Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant Swedish steel. Valves are easily serviced by removing the manifolds only.

10 Oversized main bearings - Tapered roller-type main bearings provide full contact and support of the crankshaft plus delivers the longest possible life.

11 Balanced crankshaft - Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.

12 Large capacity crankcase - Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.

13 Loadless starting - Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
