Compresor Champion de 5 HP World Latin America de dos etapas, 17 CFM a 175 PSI, tanque de aire de 120 galones, 230 voltios, trifásico | VR5-12

Champion 5 HP Compressor World Latin America Two-Stage, 17 CFM @ 175 PSI, 120 Gallon Air Tank 230-Volt, 3 Phase | VR5-12

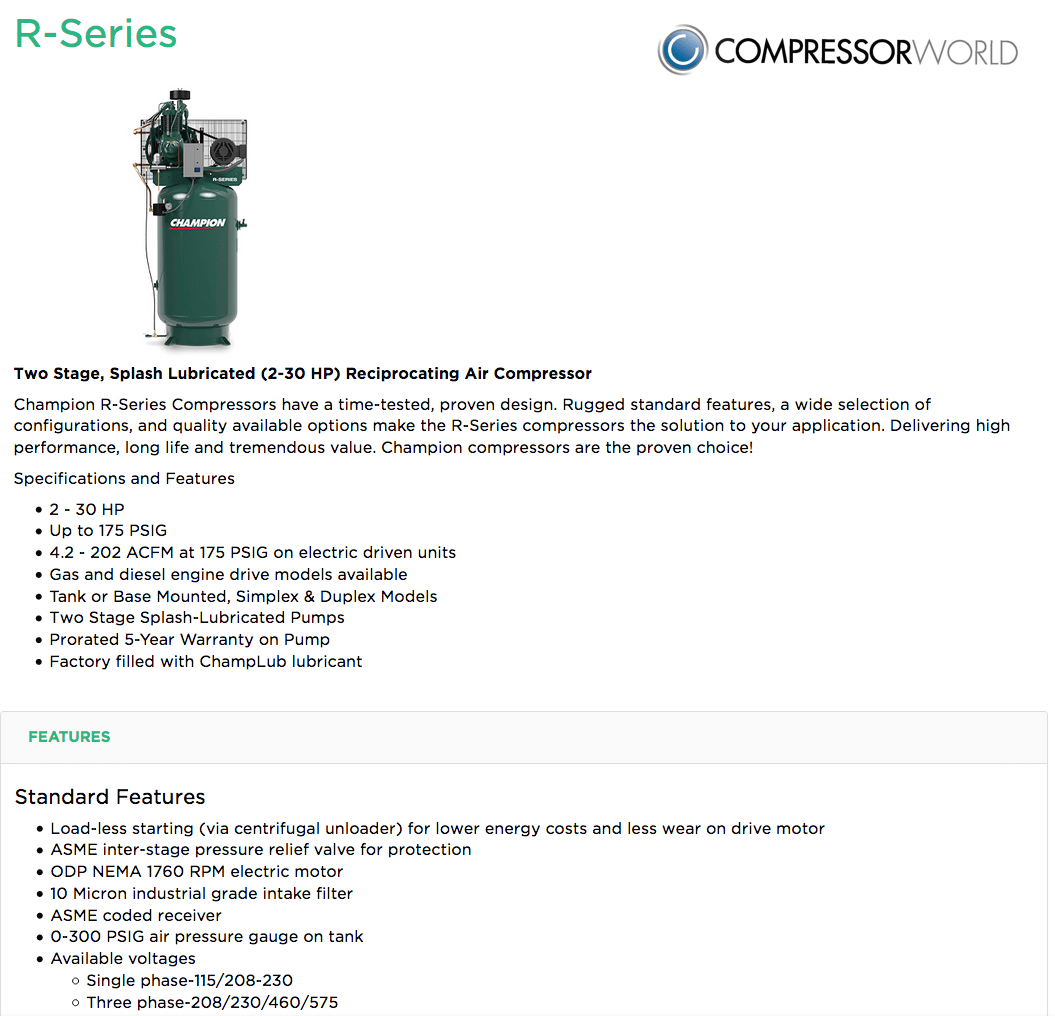

Loaded with rugged features, the Champion R-Series splash-lubricated compressors deliver high performance, long life and tremendous value.

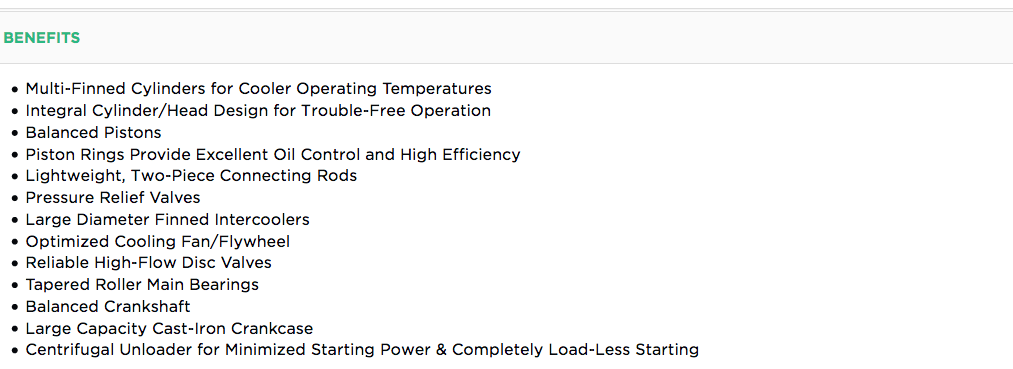

1 Multi-finned cylinders - Cooler operating temperatures result in longer life and consistent performance over time.

2 Integral cylinder/head - Gasketless design eliminates the possibility of blown head gaskets for trouble-free operation.

 3 Balanced pistons - Aluminum alloy first-stage piston is weightmatched to the cast iron second-stage piston, ensuring proper balance.

 4 Piston rings - Two compression rings and one oil control ring provide excellent oil control, and high efficiency air delivery.

 5 Lightweight connecting rods - High-density, die-cast aluminum alloy rods minimize reciprocating weight. An integral, precision-bored crankpin bearing and a needle bearing for the piston pin properly distribute bearing loads for longer bearing life than bushings.

 6 Pressure relief valves- Located in interstage and discharge.

 7 Intercoolers - Large-diameter finned tubing is positioned to obtain the greatest cooling effect between stages for maximum compressor efficiency.

 8 Optimized cooling fan/flywheel - Precision balanced flywheel has fan blades for optimum compressor cooling and life.

 9 Reliable, high-flow valves - Single-unit, disc-type valves provide low lift and long life. Discs are made of corrosion resistant Swedish steel. Valves are easily serviced by removing the manifolds only.

10 Oversized main bearings - Tapered roller-type main bearings provide full contact and support of the crankshaft plus delivers the longest possible life.

 11 Balanced crankshaft - Constructed of rugged ductile iron with large diameter throws for minimum bearing loads and counterweights to minimize vibration.

 12 Large capacity crankcase - Rugged cast iron oil reservoir has convenient sight gauge glass, corner oil fill boss and large oil drain.

 13 Loadless starting - Positive acting, governor-type centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
