Compresor Scroll Rotativo sin Aceite Chicago Tire 30 HP SpiralAIR Mundo Latinoamérica 86.5 CFM, 116 PSI, Trifásico | ESP30 | 8153605046

Modelo:
SPR30 | 8153605046
Número de artículo del proveedor:
8153605046
Llame a cualquiera de nuestras expertas en ventas para realizar un pedido. Ofrecemos asesoramiento de expertos, cotizaciones rápidas y disponibilidad de productos.
Nuestro equipo está formado por"Compresora Mundial Expertas en América Latina", ¡Desafíanos!
Lunes a viernes de 8 a. m. a 5:00 p. m. EST
Muy pronto; Horario hasta las 8:00 p.m. EST

Llame gratis: 617-841-7812 dentro de los 48 estados inferiores


"Más de 100 años de experiencia"
Se envía directamente de fábrica
  • DESCRIPCIÓN
  • DATOS TÉCNICOS
  • RESEÑAS DE PRODUCTOS
  • Preguntas y respuestas sobre el producto

DESCRIPCIÓN

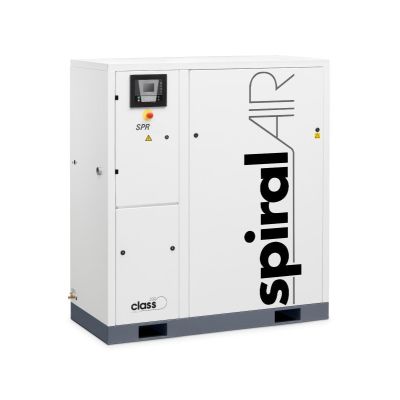

Chicago Pneumatic 30 HP SpiralAIR Oilfree Rotary Scroll Compressor World Latin America 86.5 CFM, 116 PSI, 3-Phase | SPR30 | 8153605046

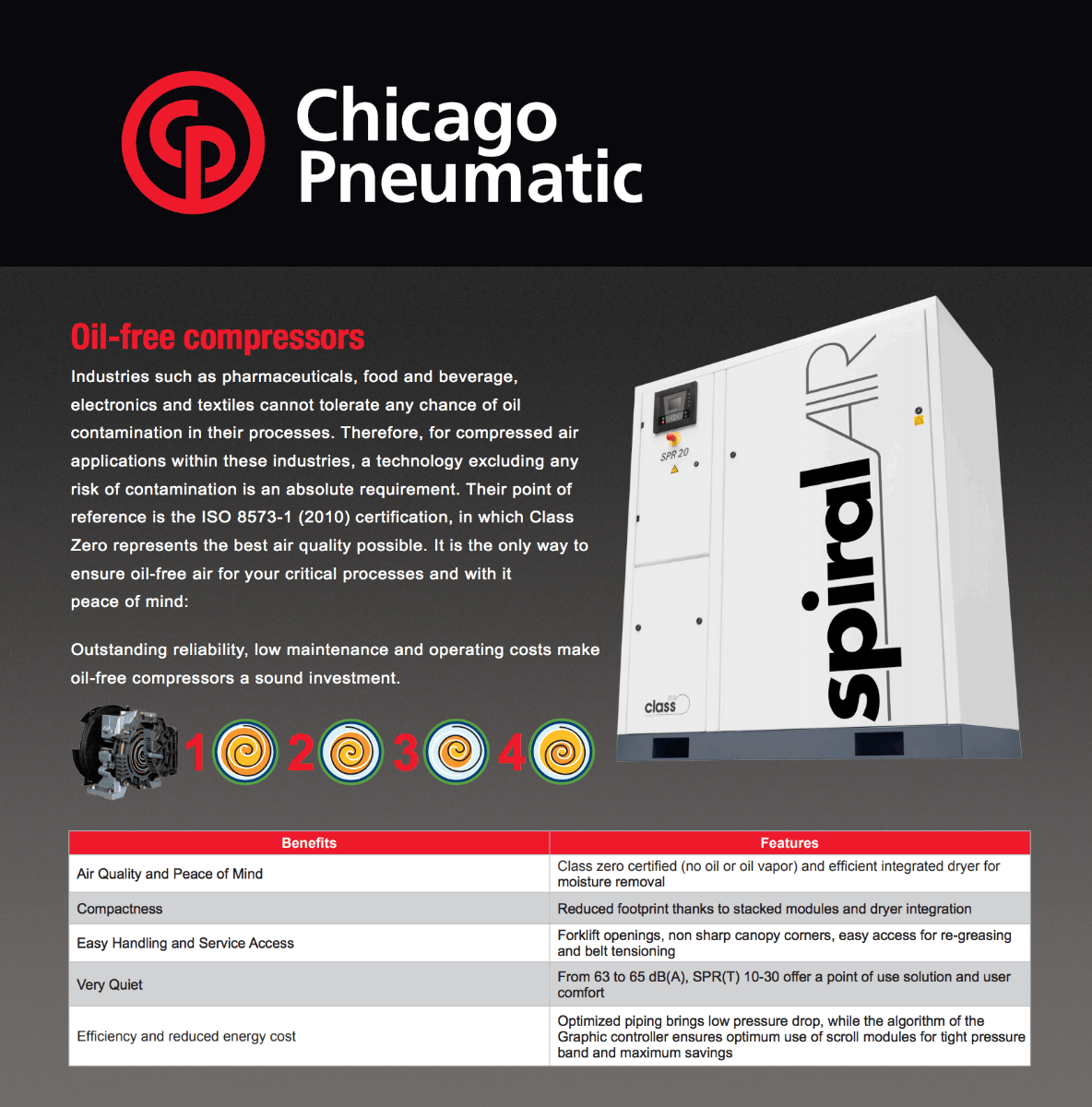

Features

  • Class zero certified (no oil) and efficient integrated dryer for moisture removal
  • Reduced footprint thanks to stacked modules and dryer integration
  • Forklift openings, non sharp canopy corners, easy access for re-greasing and belt tensioning
  • From 63 to 65 dB(A), SPR 10-30 offers a point of use solution and user comfort
  • Organized piping brings low pressure drop while the algorithm of the graphic controller ensures optimum use of scroll modules for tight pressure band and maximum savings

Benefits

  • Air quality and peace of mind
  • Compactness
  • Easy handling & service access
  • Very quiet
  • Efficiency and reduced energy cost

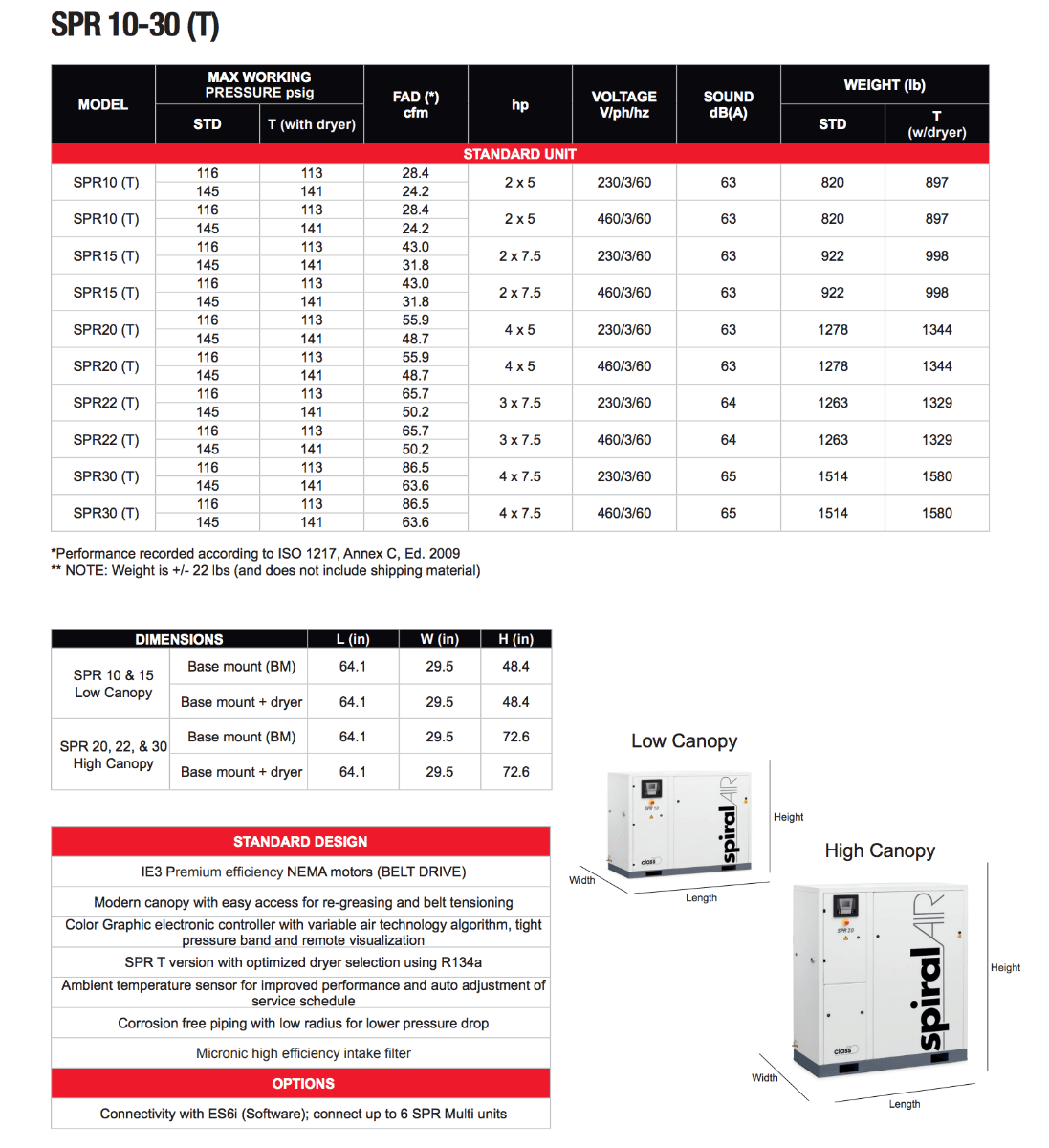

DATOS TÉCNICOS

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      86.5 CFM @ 100 PSI
    • Compressor Style
      Oilless Scroll
    • Controls
      Start/Stop
    • Horsepower (HP)
      30 HP (4 x 7.5)
    • Max Pressure (PSI)
      116 PSI
  • Overview & Technical Details

    • Sound Level dBA
      65 dB(A)
  • Additional Features

    • After Cooler
      Included
    • Magnetic Starter
      Included
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      64.1" x 29.5" x 48.4"
    • Weight (lbs)
      1514.000000
  • Motor Data

    • Motor Type
      IE3 Premium Efficiency
  • Power Requirements

    • 208/3/60
      92 Full Load Running Amps
    • 230/240/3/60
      80 Full Load Running Amps
    • 460/480/3/60
      40 Full Load Running Amps
    • Standard Voltages
      230/460/3/60
  • Warranty

    • Standard Warranty
      Factory Warranty
