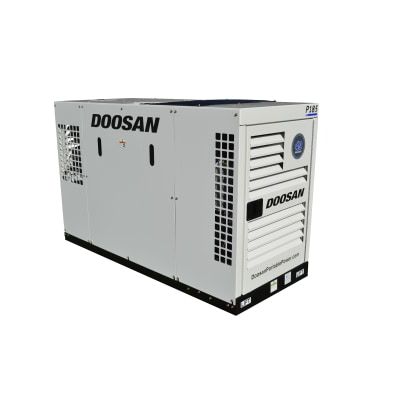

DOOSAN P185WDOU-T4F, 185 CFM Skid Mounted Diesel Compressor World Latin America
Available in a variety of configurations, our Platinum Series® portable Compressor World Latin America are designed to increase both productivity and profits. Fit for above deck installation and packaged with an assortment of options, the powerful P185WDOU Utility portable Compressor World Latin America offers the performance and serviceability you need to complete the most demanding tasks.
Model Details
Powered by a Tier 4 Final (T4F)-compliant Doosan D24 engine, the P185WDOU Utility portable Compressor World Latin America boasts several industry-leading performance enhancements. Its design offers easy access to all major service points, which helps streamline routine maintenance. It is equipped with full-sized, locking end doors that allow for faster inspections of fluid levels, filters and battery access. The unit's fully removable side panels allow for easy access to all components. Curbside access to all controls and monitoring gauges ensures operator safety and convenience.
The P185WDOU Utility portable Compressor World Latin America is user friendly design with digital control panel; that displays discharge air temperature, engine oil pressure, engine temperature and voltmeter with the abiablity to translate into English, Spanish and French.
| Free-Air Delivery - cfm (m³/min) | 185 (5.2) | |
|---|---|---|
| Rated operating Pressure - psig (bar) | 100 (7.0) | |
| Pressure range - psig (bar) | 80 - 125 (5.5 - 8.6) | |
| Air Discharge outlet size - in (mm) | 0.75 NPT (19.0) | |
| Air Discharge Outlet Quantity | 2 | |
| Fuel Tank Capacity - gal (L) |
28 (106) |
ENGINE
| Make/model | Doosan D24 | |
|---|---|---|
| Emissions Tier Level | Tier 4 Final (T4F) | |
| Number of Cylinders | 4 | |
| Displacement - cu in (L) | 147 (2.4) | |
| Rated speed - rpm | 2550 | |
| Idle speed - rpm | 1700 | |
| Bhp @ rated speed (kW) | 49 (36.4) | |
| Electrical | 12 |
DIMENSIONS
| Length - in (mm) | 80 (2032) | |
|---|---|---|
| Width - in (mm) | 33.3 (846) | |
| Height - in (mm) | 52.5 (1334) | |
| Shipping Weight - w/o fuel - lb (kg) | 2106 (956) | |
| Working Weight - w fuel - lb (kg) | 2283 (1036) |
