DESCRIPCIÓN

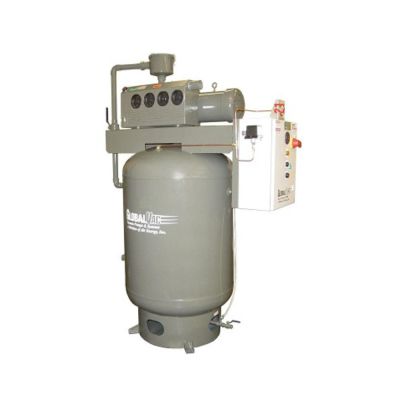

SIMPLEX TANK
The GlobalVAC lubricated rotary vane vacuum pump tank mount vacuum systems are available in 1 to 10 hp and mounted on a horizontal receiver. Systems are also available on a vertical receiver for 1 to 5hp. The system is built with isolation valve, check valve and rotary vane vacuum pump mounted inlet filter assembly with quick clasp system for easy element changeout, The receiver is equipped with a sight glass and a manual drain valve. The System is operated by a mounted and wired Simplex Control Panel.
Please contact us for more information on our
Simplex Tank rotary vane vacuum pump system.
Simplex Rotary Vane Vacuum Pump Control Panel Including the Following:
- Line Voltage Motor Starter with Overload Protection
- 120V Control Transformer with CB protected Primary and Secondary Circuits
- Hand/Off/Auto Selector Switch for Rotary Vane Vacuum Pump
- Door Mounted Disconnect for Rotary Vane Vacuum Pump
- Rotary Vane Vacuum Pump Switch
- Vacuum Gauge
- Run Light
- Hour Meter
