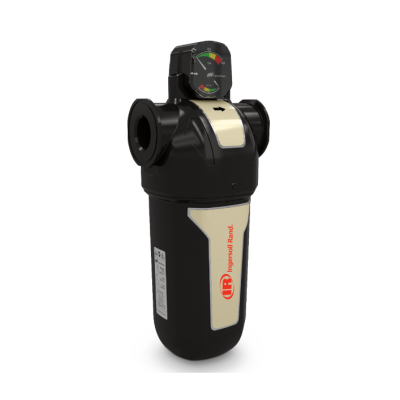

Filtro de uso general Ingersoll Rand 22 SCFM, 1/2" NPT, uso general (0,01 micras/0,01 ppm) | FA40IH

Ingersoll Rand Filtration (General)

IR filters come in four different series, G=General Purpose (1 micron/.5 ppm), H=High Efficiency (.01 micron /.01 ppm), A=Activated Carbon (.003 ppm), and D=Dust Protection (1 micron). G and H include auto float drains, while A and D have manual drains. All filters come with a differential pressure indicator. Ratings are based on 100F inlet air temperature and 100 PSIG inlet air pressure. Maximum pressure is 250 PSIG; ambient temperature is 35°F-150°F.

FEATURES

• Accurate Information: Patented dual indicator shows differential pressure drop and operating efficiency
• Rugged Design: All-aluminum, precision die cast body suitable for 176 °F / 80 °C and 250 psig / 17.2 bar MAWP applications
• Reliable Operation: Filter element with stainless steel mesh withstands high pressure and minimizes flow restriction
• Easy Mainteance: Ergonomic bowl design with no-touch filter simplifies element replacement
• Lone Element Life: Proprietary media coating technology protects against corrosion and increases element life
