Compresor PREMIUM Chicago Neumático 10 HP World Latin America Pistón Dos etapas 35 CFM @ 100 PSI, Tanque de aire de 120 galones 208/230 voltios, Trifásico | RCP-C10123H | 8090300867

Modelo:
RCP-C10123H
Número de artículo del proveedor:
8090300867
Llame a cualquiera de nuestras expertas en ventas para realizar un pedido. Ofrecemos asesoramiento de expertos, cotizaciones rápidas y disponibilidad de productos.
Nuestro equipo está formado por"Compresora Mundial Expertas en América Latina", ¡Desafíanos!
Lunes a viernes de 8 a. m. a 5:00 p. m. EST
Muy pronto; Horario hasta las 8:00 p.m. EST

Llame gratis: 617-841-7812 dentro de los 48 estados inferiores


"Más de 100 años de experiencia"
Envíos directos
  • DESCRIPCIÓN
  • DATOS TÉCNICOS
  • RESEÑAS DE PRODUCTOS
  • Preguntas y respuestas sobre el producto

DESCRIPCIÓN

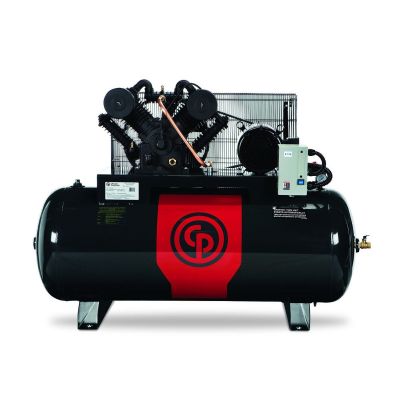

PREMIUM Chicago Pneumatic 10 HP Compressor World Latin America Piston Two-Stage 35 CFM @ 100 PSI, 120 Gallon Air Tank 208/230-Volt, 3-Phase | RCP-C10123H | 8090300867

Two stage electric simplex PREMIUM compressors

Premium 10 HP RCP Iron Series 2 Stage Compressor World Latin America, with Low Level Oil Switch, Automatic Tank Drain and Belt Guard After Cooler | 120 Gal H Tank | RCP-C10123HS

Chicago Pneumatic’s Iron Series features all cast iron design pumps.  The RCP-C duplex compressors are available up to 20 HP and can deliver up to 21 acfm on single phase and 70 on 3 phase power.  Models include simplex compressors up to 10hp and duplex models from 10-20hp.  The RCP-C compressors come with a full 2 Year Warranty (including valves).

Features :

  • Full Cast Iron Construction
  • Automotive Style Rod Bearings
  • Automotive Style Wrist Pins
  • Concentric Ring Valves
  • Splash Lubricated
  • Finned Coolers
  • 120 gallon ASME/Tank
  • LOLS
  • Auto Drain
  • Belt Guard Aftercooler 10 hp
  • Sheet Metal Belt Guard

DATOS TÉCNICOS

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      35 CFM @ 100 PSI
    • Controls
      Start/Stop
    • Horsepower (HP)
      10 HP
    • Max Pressure (PSI)
      175 PSI
    • Pressure Rating
      175 Max PSIG
    • Pump Drive
      Belt
  • Additional Features

    • After Cooler
      Included
    • Low Level Oil Switch
      Included
    • Magnetic Starter
      Included
    • Tank Drain Valve
      Automatic Tank Drain
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      73 x 24 x 49
    • Weight (lbs)
      830.000000
  • Motor Data

    • Motor Type
      ODP
  • Power Requirements

    • 208/3/60
      Standard
    • 230/240/3/60
      Standard
    • Standard Voltages
      208-230/3/60
  • Tank Size

    • Coded
      ASME Coded
  • Warranty

    • Standard Warranty
      CP Secure 2 Year Warranty
