Filtro coalescente fino Quincy 1800 CFM, brida de 4" | QCF 1800
DESCRIPCIÓN
DATOS TÉCNICOS
RESEÑAS DE PRODUCTOS
Preguntas y respuestas sobre el producto
DESCRIPCIÓN
STANDARD LINE: FINE COALESCING Quincy's Standard Filtration lineup consists of the three most common types of filters used in compressed air systems.
Push-to-fit design used on threaded filters for easy filter element replacement
Multiwrap element construction ensures optimum performance
Modular design saves energy and allows for easy installation of multiple threaded filters
Aluminum housings feature electrophoretic coating to prevent corrosion
10-year housing guarantee on aluminum housings
Standard pressure differential indicator on aluminum housings
Standard automatic condensate drain on aluminum housings
Quincy's Coalescers are designed to remove liquid aerosols and mists from compressed air. The binder free borosilicate fiber element provides high performance with a minimum of pressure drop. The Polishing Coalescer will reduce the contamination level of the compressed air to 0.01PPM by weight and is DOP rated at 99.99999% efficient down to 0.01 micron.
DATOS TÉCNICOS

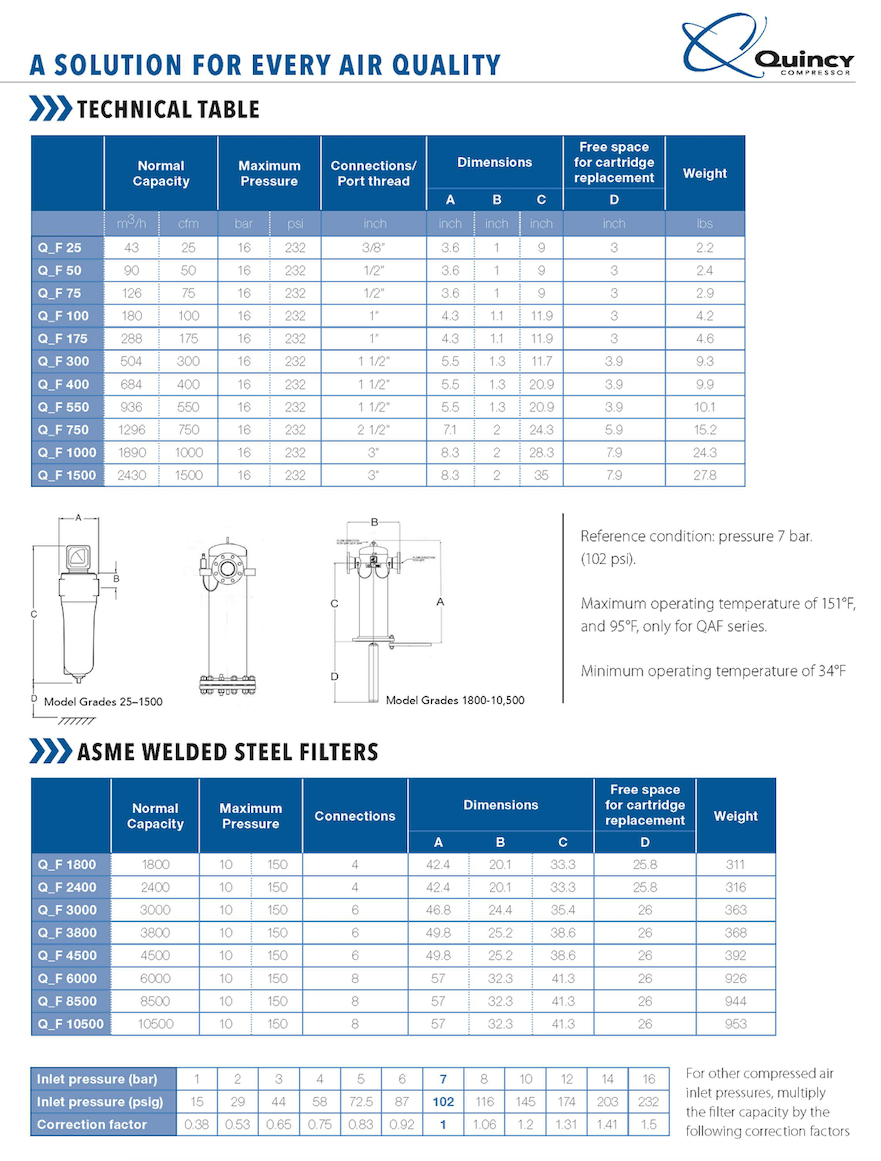

Product Specification
CFM (Capacity)
1800 SCFM
Pressure Rating
150 Maximum Pressure (PSIG)
Connection
Connection NPT
4" Flange

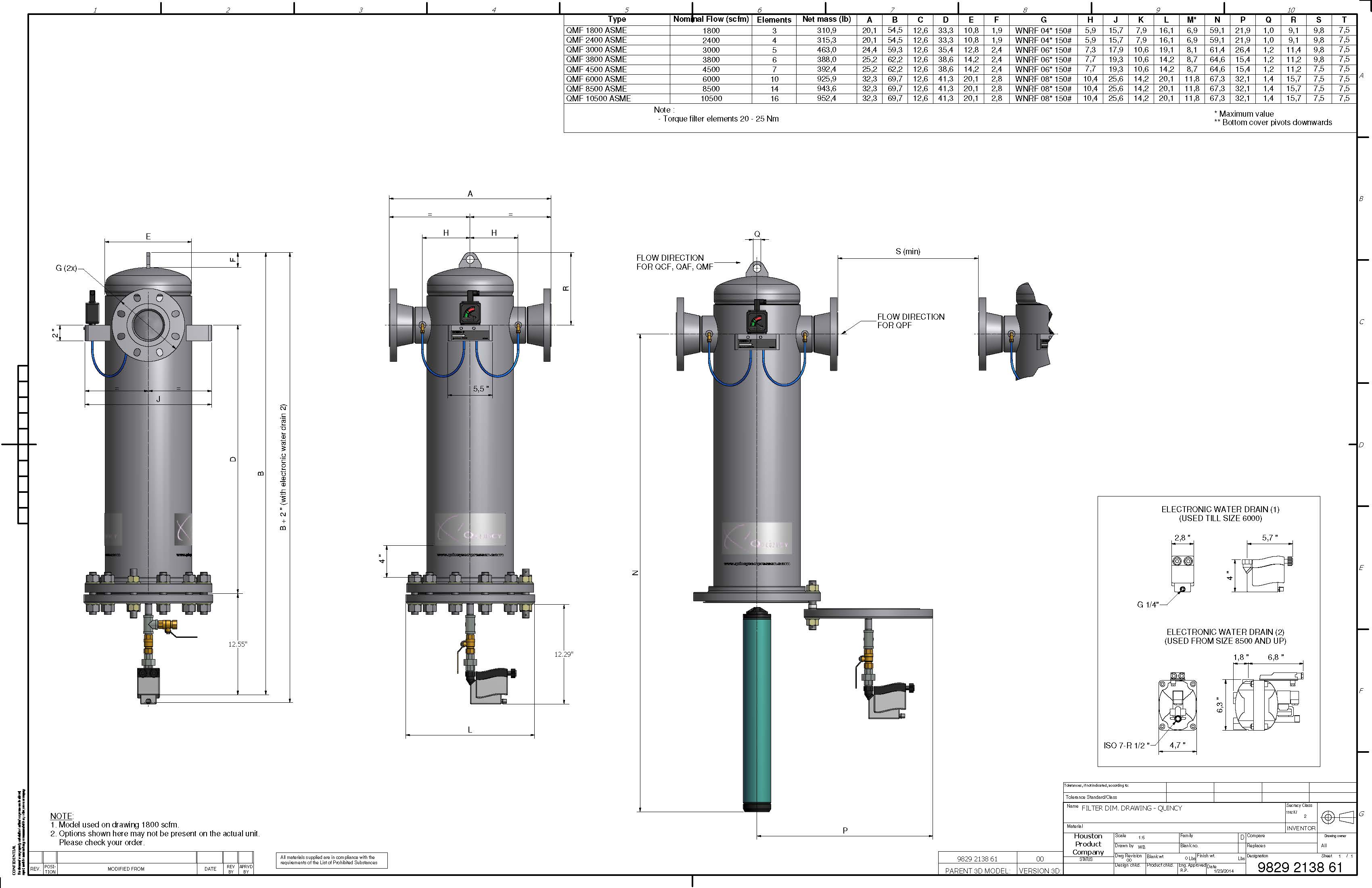

Dimensions & Weight
Dimensions (L)(W)(H)
42.4" x 20.1" x 33.3"
Weight (lbs)
320.000000
Filtration Grade
Filtration Grade
0.01 Micron or Larger
Tank Size
Coded
ASME Welded Steel Filter
