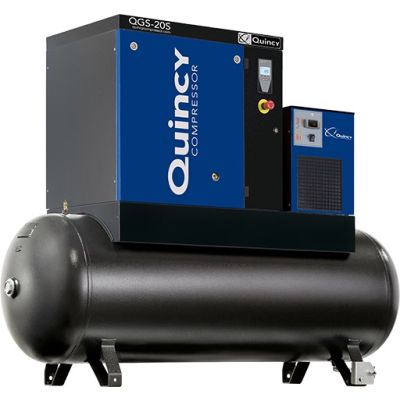

Compresor de tornillo rotativo Quincy QGS 20s TMD-3 de 20 HP World Latin America Tanque de aire de 120 galones y secador de aire refrigerado 208-230/460 voltios

Modelo:
QGS 20s TMD-3
Número de artículo del proveedor:
4152022000
Llame a cualquiera de nuestras expertas en ventas para realizar un pedido. Ofrecemos asesoramiento de expertos, cotizaciones rápidas y disponibilidad de productos.
Nuestro equipo está formado por"Compresora Mundial Expertas en América Latina", ¡Desafíanos!
Lunes a viernes de 8 a. m. a 5:00 p. m. EST
Muy pronto; Horario hasta las 8:00 p.m. EST

Llame gratis: 617-841-7812 dentro de los 48 estados inferiores


"Más de 100 años de experiencia"
Envíos directos
  • DESCRIPCIÓN
  • DATOS TÉCNICOS
  • RESEÑAS DE PRODUCTOS
  • VÍDEOS
  • Preguntas y respuestas sobre el producto

DESCRIPCIÓN

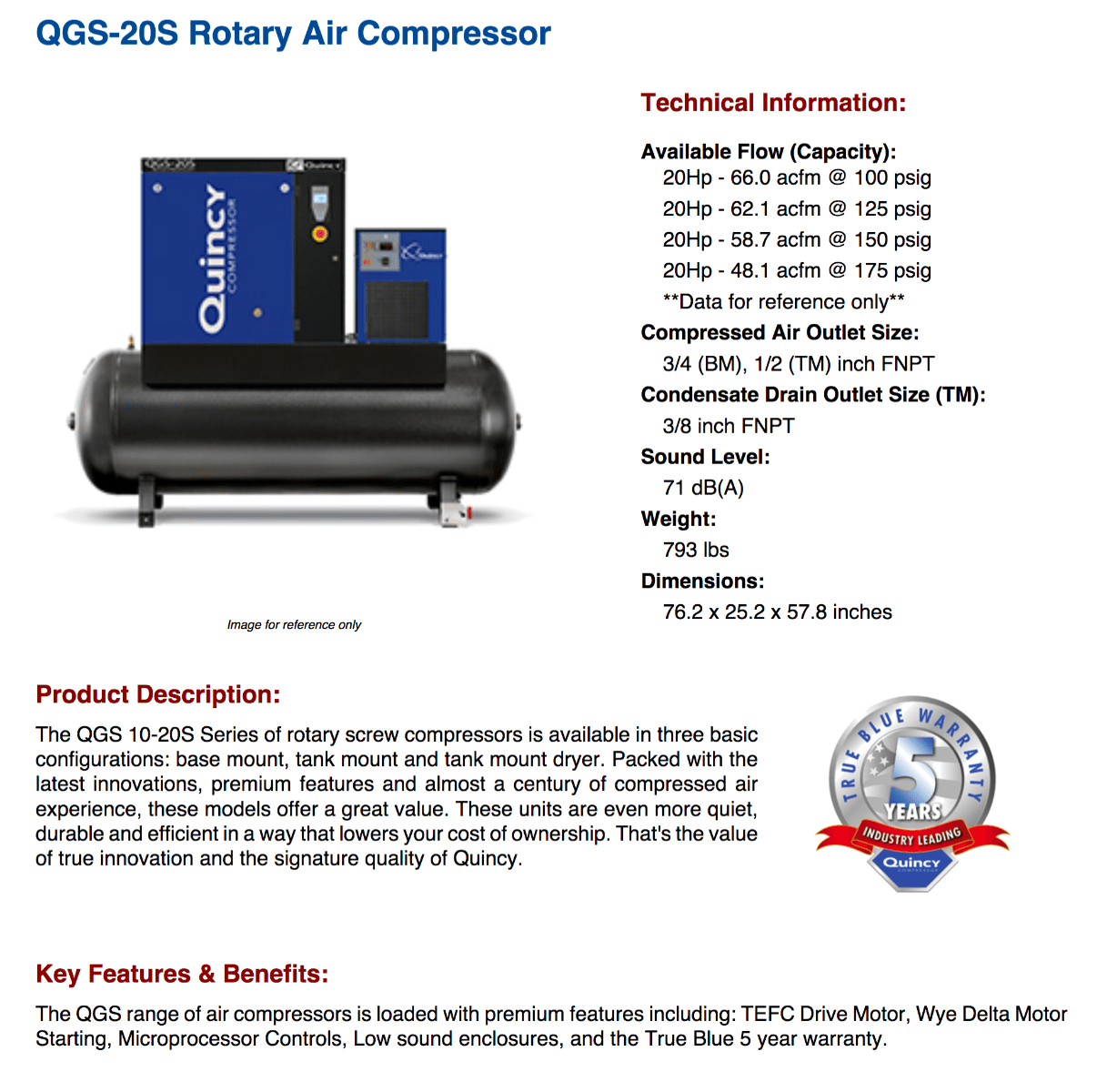

Quincy 20 HP Rotary Screw Compressor World Latin America 62.1 CFM 120 Gallon Tank & Air Dryer | QGS-20 17 TMD

ROTARY SCREW TECHNOLOGY FOR EVERY APPLICATION
Quincy understands the critical nature of your compressed air system to maintain production. Quincy's QGS line of compressors help drive your profitability by lowering your total cost of ownership while providing you with the performance and reliability that you have come to expect from Quincy compressors. The QGS Compressor World Latin America has many of the features, benefits, and advantages of larger compressed air systems in a package that fits your application and at a price you can afford.

ARE YOU USING THE RIGHT TECHNOLOGY FOR YOUR APPLICATION?

With ease of service and reliability in mind, the Quincy QGS offers superior compressed air performance in a compact, modern design. With a continuous 100% duty cycle, this rotary screw compressor also operates without the elevated vibration and sound levels normally associated with typical piston compressors. A small footprint and lower noise levels mean increased installation flexibility, making the Quincy QGS ideal for most applications. And, with the optional receiver tank and integrated dryer, you will save valuable floor space and lower your cost of operation.

DATOS TÉCNICOS

  • Product Specification

    • CFM (Capacity)
      60.8 ACFM
    • Controls
      Load/No Load Controls with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      20
    • Min Ambient Temperature
      35 F
    • Rated Duty Cycle
      100%
    • Tank Material
      Carbon Steel
  • Overview & Technical Details

    • Air Dryer Style
      Refrigerated
    • Electrical Starting
      Across the Line Starting
    • Fluid Type
      8,000 Hour Synthetic
    • Max Ambient Temperature
      104 F
    • Power Source/Type
      Electric
    • Sound Level dBA
      71 dB(A)
  • Additional Features

    • Air Dryer Included
      Included
    • Tank Drain Valve
      Manual Tank Drain
  • Connection

    • Connection NPT
      3/4"
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      76.2 x 25.2
    • Height (inch)
      57.8
    • Length (inch)
      76.2
    • Width (inch)
      25.2
    • Weight (lbs)
      783.000000
  • Power Requirements

    • 208/3/60
      Standard
    • 230/240/3/60
      Standard
    • 460/480/3/60
      Standard
    • Standard Voltages
      208/230/460/3/60 (Tri Voltage)
  • Tank Size

    • Air Tank Configuration
      Horizontal
    • Air Tank Included
      Included
    • Air Tank Size
      120 Gallon
    • Coded
      ASME Coded Air Receiver
    • Tank Size
      120 Gallon Horizontal Air Tank
  • Warranty

    • Optional Warranty
      5 Year Extended Warranty
    • Standard Warranty
      1 Year Parts & Labor, 3 Year Major Component Warranty
