Quincy QGS-100, Compresor de Tornillo Rotativo de 100 HP World Latin America 413.6 CFM 125 PSI, 460 Voltios, Trifásico, Enfriado por Aire

Modelo:
QGS 100 BM-3
Número de artículo del proveedor:
8158051295
Llame a cualquiera de nuestras expertas en ventas para realizar un pedido. Ofrecemos asesoramiento de expertos, cotizaciones rápidas y disponibilidad de productos.
Nuestro equipo está formado por"Compresora Mundial Expertas en América Latina", ¡Desafíanos!
Lunes a viernes de 8 a. m. a 5:00 p. m. EST
Muy pronto; Horario hasta las 8:00 p.m. EST

Llame gratis: 617-841-7812 dentro de los 48 estados inferiores


"Más de 100 años de experiencia"
Envíos directos
  • DESCRIPCIÓN
  • DATOS TÉCNICOS
  • RESEÑAS DE PRODUCTOS
  • VÍDEOS
  • Preguntas y respuestas sobre el producto

DESCRIPCIÓN

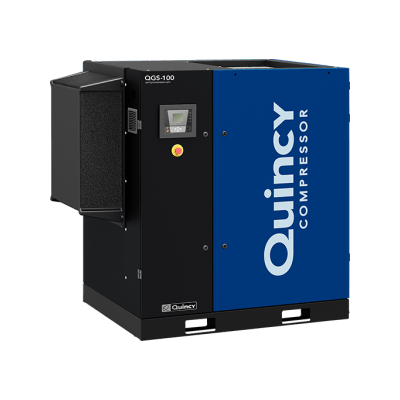

Quincy QGS-100, 100 HP Rotary Screw Compressor World Latin America 413.6 CFM 125 PSI, 460 Volt, 3-Phase, Air Cooled

The Quincy QGS offers superior compressed air performance in a compact, modern design. With a continuous 100% duty cycle, this rotary screw compressor operates without the elevated vibration and sound levels normally associated with typical piston compressors. A small footprint and lower sound levels provide increased installation flexibility, making the QGS ideal for most applications.

ROTARY SCREW TECHNOLOGY FOR EVERY APPLICATION
Quincy understands the critical nature of your compressed air system to maintain production. Quincy's QGS line of compressors help drive your profitability by lowering your total cost of ownership while providing you with the performance and reliability that you have come to expect from Quincy compressors. The QGS Compressor World Latin America has many of the features, benefits, and advantages of larger compressed air systems in a package that fits your application and at a price you can afford.

ARE YOU USING THE RIGHT TECHNOLOGY FOR YOUR APPLICATION?
With ease of service and reliability in mind, the Quincy QGS offers superior compressed air performance in a compact, modern design. With a continuous 100% duty cycle, this rotary screw compressor also operates without the elevated vibration and sound levels normally associated with typical piston compressors. A small footprint and lower noise levels mean increased installation flexibility, making the Quincy QGS ideal for most applications. And, with the optional receiver tank and integrated dryer, you will save valuable floor space and lower your cost of operation.

The Quincy QGS offers superior compressed air performance in a compact, modern design. With a continuous 100% duty cycle, this rotary screw compressor operates without the elevated vibration and sound levels normally associated with typical piston compressors. A small footprint and lower sound levels provide increased installation flexibility, making the QGS ideal for most applications.
ROTARY SCREW TECHNOLOGY FOR EVERY APPLICATION
Quincy understands the critical nature of your compressed air system to maintain production. Quincy's QGS line of compressors help drive your profitability by lowering your total cost of ownership while providing you with the performance and reliability that you have come to expect from Quincy compressors. The QGS Compressor World Latin America has many of the features, benefits, and advantages of larger compressed air systems in a package that fits your application and at a price you can afford.

ARE YOU USING THE RIGHT TECHNOLOGY FOR YOUR APPLICATION?
With ease of service and reliability in mind, the Quincy QGS offers superior compressed air performance in a compact, modern design. With a continuous 100% duty cycle, this rotary screw compressor also operates without the elevated vibration and sound levels normally associated with typical piston compressors. A small footprint and lower noise levels mean increased installation flexibility, making the Quincy QGS ideal for most applications. And, with the optional receiver tank and integrated dryer, you will save valuable floor space and lower your cost of operation.

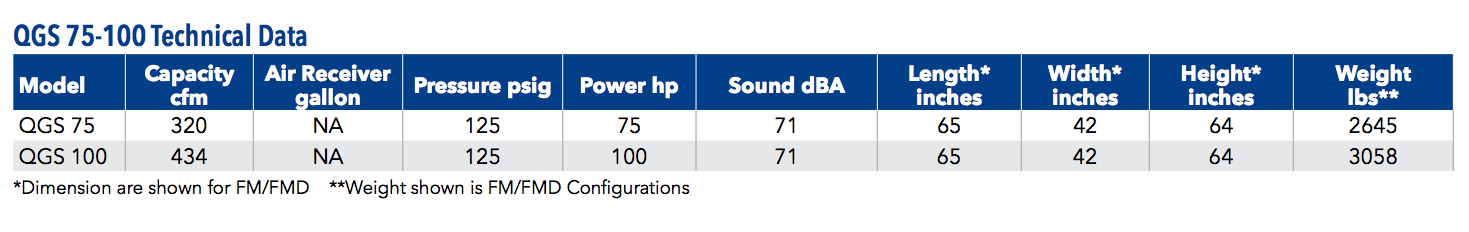

Technical Data
Model QGS-100
HP 100 hp
Flow (ACFM) 413
Full Load Pressure (PSIG) 100
Max Pressure (PSIG) 107
Min Pressure (PSIG) 91
Package Discharge Size 2" NPT
Max Ambient 115 F
Min Ambient 32 F
Fluid Capacity 7 gal
Fluid Carryover 3 ppm
Sound 72 dBA
Full Load Drive 117 bhp
Unloaded Drive 34 bhp
Total Power 87.53 kW
Total Specific Power 19.5 kW/100 cfm
Weight (Lbs.) 2903
Dimentions (LxWxH) 76" x 42" x 64"




DATOS TÉCNICOS

  • Product Specification

    • Capacity (CFM) @ 125 PSI
      413 CFM @ 125 PSI
    • Compressor Style
      Lubricated Rotary Screw
    • Controls
      Load/No Load Controls with Timed Shutdown
    • Cooling Type
      Air Cooled
    • Horsepower (HP)
      100
    • Max Pressure (PSI)
      132 PSI
    • Min Ambient Temperature
      32 F
  • Overview & Technical Details

    • Approach Temperature
      20 Degrees F
    • Certifications
      ASME/UL
    • Fluid Capacity
      7 Gallons
    • Fluid Carry Over
      3 ppm
    • Fluid Type
      8,000 Hour Synthetic
    • Max Ambient Temperature
      115 F
    • Sound Level dBA
      71 dB(A)
  • Additional Features

    • After Cooler
      Included
  • Connection

    • Connection NPT
      2" NPT
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      76" x 42" x 64"
    • Height (inch)
      64"
    • Length (inch)
      76"
    • Width (inch)
      42"
    • Weight (lbs)
      3058.000000
  • Engine Data

    • Full Load Drive
      117 bhp
    • Total Power
      87.53 kW
    • Total Specific Power
      19.5 kW/100 cfm
  • Power Requirements

    • 460/480/3/60
      124 Full Load Amps
    • Standard Voltages
      460/3/60
  • Warranty

    • Optional Warranty
      5 Year Extended Warranty
    • Standard Warranty
      1 Year Parts & Labor, 3 Year Major Component Warranty
