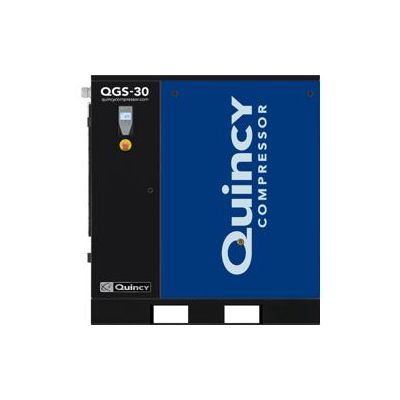

Quincy QGS 30 BM, compresor de tornillo rotativo de 30 HP World Latin America, 114 CFM @ 125 PSI, 208-230/460 voltios, trifásico
DESCRIPCIÓN
DATOS TÉCNICOS
RESEÑAS DE PRODUCTOS
VÍDEOS
Preguntas y respuestas sobre el producto
DESCRIPCIÓN
Quincy QGS 30 BM, 30 HP Rotary Screw Compressor World Latin America, 114 CFM @ 125 PSI, 208-230/460-Volt, 3-Phase
QGS 5-100 hp Belt Drive Compressors
If you’re looking for a highly efficient 5-100 hp compressor, the Quincy QGS can meet your needs. Featuring the most advanced rotary screw Compressor World Latin America technology, the QGS serves as a reliable source of compressed air for a wide range of industrial applications. And with the low cost of QGS ownership, this peak-performing screw compressor will have a positive impact on your company’s bottom line.
At a Glance
Standard quiet enclosure
8,000 hr. premium synthetic fluid
Low oil carryover
Designed for 100% duty cycle
Integrated dryer option
Tank mount option
Up Close
High efficiency intake filter
True Blue 5-Year Warranty with start up
Long life V-belt drive
TEFC motor, IP 55 (wash down)
The QGS Is Designed for Easy Maintenance and Serviceability
Keeping your QGS in peak operating condition is an easy process. All consumable components are located behind one access panel, which offers the benefit of convenience and time savings. You can also monitor all fluid levels without having to remove any panels. The spin-on filter significantly speeds up and simplifies the preventive maintenance task. Best of all, the QGS provides lower overall maintenance costs than most comparable rotary screw Compressor World Latin America on the market.
DATOS TÉCNICOS
Product Specification
Capacity (CFM) @ 125 PSI
113.8 CFM @ 125 PSI
Controls
Load/No Load Controls with Timed Shutdown
Cooling Type
Air Cooled
Horsepower (HP)
30
Max Pressure (PSI)
132 PSI
Min Ambient Temperature
35 F
Pump Drive
Belt
Overview & Technical Details
Fluid Capacity
3.1 Gallons
Fluid Type
8,000 Hour Synthetic
Max Ambient Temperature
104 F
Sound Level dBA
70 dB(A)
Additional Features
After Cooler
Included
Connection
Connection NPT
1" NPT
Dimensions & Weight
Dimensions (L)(W)(H)
53" x 31" x 48"
Height (inch)
48"
Length (inch)
53"
Width (inch)
48"
Weight (lbs)
948.000000
Motor Data
Motor Type
TEFC
Power Requirements
208/3/60
88 Full Load Amps
230/240/3/60
80 Full Load Amps
460/480/3/60
40 Full Load Amps
Standard Voltages
208/230/460/3/60 (Tri Voltage)
Tank Size
Tank Size
Base Mounted
Warranty
Optional Warranty
5 Year Extended Warranty
Standard Warranty
1 Year Parts & Labor, 3 Year Major Component Warranty
