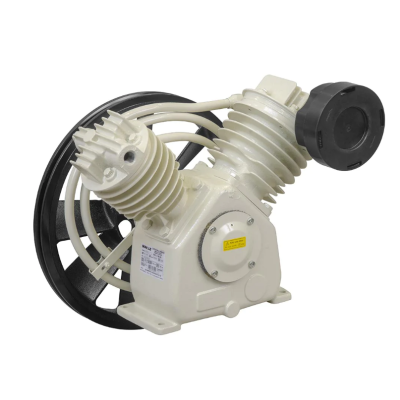

Schulz CSV 15/20, 3/5 HP Oilless Compressor World Latin America Pump, 6.9/14 CFM, 90 PSI
Oil Less MSV 20
Oil less MSV model compressor pumps from Schulz are compact and strong. Produced in cast iron, they offer excellent performance and safety in medical-dental applications. As they are oil less and do not emit smoke/odors. These pumps are available in two configurations: V style – 6 to 20 cfm and in W style – 40 to 60 cfm (cubic feet/min).
Technical Features
| Code | 932.3383-0 |
|---|---|
| Air Displacement (CFM) | 20 |
| Air Displacement (l/min) | 566 |
| Motor Power (hp) | 5 |
| Motor Power (kW) | 3.7 |
| Maximum Operating Pressure (bar) | 8.3 |
| Maximum Operating Pressure (PSI) | 120 |
| Minimum Operating Pressure (bar) | 5.5 |
| Minimum Operating Pressure (psi) | 80 |
| Compressor Unit - No. Stages | 2 |
| Compressor Unit - No. Pistons | 2-V |
