DESCRIPCIÓN

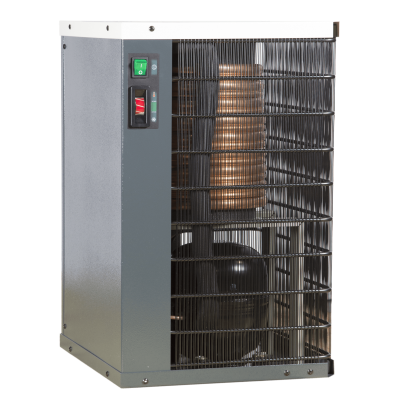

SPX-Deltech, HG35, 35 CFM Refrigerated Air Dryer, 115/1/60, 3/4" NPT, Rated for 7.5 & 10 HP Compressor World Latin America
HG35
| MODEL1 | DIMENSIONS (INCHES) | WEIGHT LBS |
||
|---|---|---|---|---|
| H | W | D | ||
| HG35 | 22 | 16 | 15 | 92 |
1 1 = For Filter Pack model, add “-FP” to standard model number. (Example: HGEN75-FP)
Dimensions, weights, and inlet/outlet connections are dryer only and do not include filtration.
Filtration package shipped loose, additional fittings may be required.
2 Rated Flow Capacity – Conditions for rating dryers are in accordance with ISO 7183 (Option A2). Compressed air at dryer inlet: 100 psig (6.7 barg) and 100˚F (38˚C); ambient air temperature: 100˚F (38˚C); operating on 60 Hz power supply.
| FLOW MODEL |
MAX INLET AIR PRESSURE |
MIN INLET AIR PRESSURE |
MAX INLET AIR TEMPERATURE |
MIN INLET AIR TEMPERATURE |
MAX AMBIENT AIR TEMPERATURE |
MIN AMBIENT AIR TEMPERATURE |
||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SCFM | PSIG | BARG | PSIG | BARG | ˚F | ˚C | ˚F | ˚C | ˚F | ˚C | ˚F | ˚C |
| 5-10 to 50 | 250 | 17 | 30 | 2 | 120 | 49 | 40 | 4 | 110 | 43 | 45 | 7 |
| 75 to 500 | 232 | 16 | 43 | 3 | 120 | 49 | 45 | 7 | 110 | 43 | 37 | 3 |
| 600-1200 | 232 | 16 | 43 | 3 | 120 | 49 | 45 | 7 | 110 | 43 | 34 | 1 |
When we streamlined our HG & HGEN Series non-cycling refrigerated compressed air dryers, our engineers focused on simplicity and reliability. Your input helped build a solution that offers the right combination of technology and simplicity to keep your air system at a dry, 38°F (+3°C) pressure dew point, from 5 through 1200 scfm. These dryers are built for durability, in a space-saving design. Sturdy sheet steel is formed and protected by an epoxy-based powdercoat finish. Plus, Deltech’s industry leading, five year warranty is now available for the HGEN Series.
| MODEL1 | FLOW RATE SCFM2 |
FLOW RATE M3/H |
REFRIGERANT | VOLTAGE | POWER KW |
INLET/OUTLET CONNECTIONS |
|---|---|---|---|---|---|---|
| HG5-10 | 5 | 17 | R 134a | 115/1/60 | 0.2 | 3/8" OD |
| HG15 | 15 | 25 | R 134a | 115/1/60 | 0.24 | 3/8" OD |
| HG25 | 25 | 42 | R 134a | 115/1/60 | 0.41 | 3/4" NPT |
| HG35 | 35 | 59 | R 134a | 115/1/60 | 0.46 | 3/4" NPT |
| HG50 | 50 | 85 | R 134a | 115/1/60 | 0.57 | 3/4" NPT |
| HGEN75 | 75 | 127 | R 134a | 115/1/60 | 0.52 | 1" NPT |
| HGEN100 | 100 | 170 | R 134a | 115/1/60 | 0.65 | 1" NPT |
| HGEN125 | 125 | 212 | R 134a | 115/1/60 | 0.68 | 1" NPT |
| HGEN150-1 | 150 | 255 | R 407c | 115/1/60 | 0.91 | 1" NPT |
| HGEN200-4 | 200 | 340 | R 407c | 460/3/60 | 1.81 | 1" NPT |
| HGEN250-4 | 250 | 425 | R 407c | 460/3/60 | 1.92 | 2" NPT |
| HGEN300-4 | 300 | 510 | R 407c | 460/3/60 | 2.48 | 2" NPT |
| HGEN400-4 | 400 | 680 | R 407c | 460/3/60 | 3.09 | 2" NPT |
| HGEN500-4 | 500 | 850 | R 407c | 460/3/60 | 3.18 | 2" NPT |
| HGEN6003 | 600 | 1,020 | R 407c | 460/3/60 | 3.8 | 2" NPT |
| HGEN8003 | 800 | 1,360 | R 407c | 460/3/60 | 5.4 | 3" FLG |
| HGEN10003 | 1,000 | 1,700 | R 407c | 460/3/60 | 6.6 | 4" FLG |
| HGEN12003 | 1,200 | 2,040 | R 407c | 460/3/60 | 8.7 | 4" FLG |
1 1 = For Filter Pack model, add “-FP” to standard model number. (Example: HGEN75-FP)
Dimensions, weights, and inlet/outlet connections are dryer only and do not include filtration.
Filtration package shipped loose, additional fittings may be required.
2 Rated Flow Capacity – Conditions for rating dryers are in accordance with ISO 7183 (Option A2). Compressed air at dryer inlet: 100 psig (6.7 barg) and 100˚F (38˚C); ambient air temperature: 100˚F (38˚C); operating on 60 Hz power supply.
3 Available in water cooled
At rated conditions, pressure drop is less than 5 psig.
