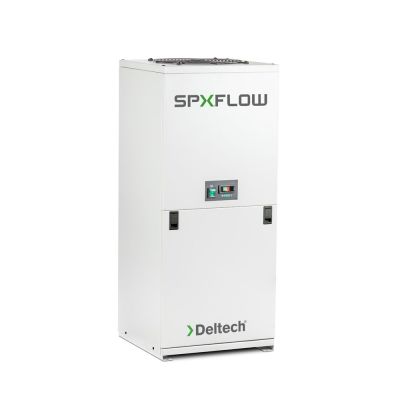

SPX-Deltech HTDN 20-FP, secador de aire de alta temperatura de 20 CFM, 3/4" NPT, 115/1/60, incluye prefiltro de partículas y filtro posterior de eliminación de aceite

Modelo:
HTDN 20-FP
Llame a cualquiera de nuestras expertas en ventas para realizar un pedido. Ofrecemos asesoramiento de expertos, cotizaciones rápidas y disponibilidad de productos.
Nuestro equipo está formado por"Compresora Mundial Expertas en América Latina", ¡Desafíanos!
Lunes a viernes de 8 a. m. a 5:00 p. m. EST
Muy pronto; Horario hasta las 8:00 p.m. EST

Llame gratis: 617-841-7812 dentro de los 48 estados inferiores


"Más de 100 años de experiencia"
Envíos directos
  • DESCRIPCIÓN
  • DATOS TÉCNICOS
  • RESEÑAS DE PRODUCTOS
  • Preguntas y respuestas sobre el producto

DESCRIPCIÓN

SPX-Deltech HTDN 20-FP, 20 CFM High Temperature Air Dryer, 3/4" NPT, 115/1/60, Includes Particulate Pre Filter, and Oil Removing After Filter


Cool, Dry and Clean Your Compressed Air Supply in a Single, Compact Package
- Replaces separate aftercooler, separator, dryer and filter
- Ideal for auto body shops, auto service centers and commercial and industrial facilities with 5 to 30 horsepower compressors

Clean, Dry Air
- Prevents surface blemishes and poor paint adhesion caused by wet air
- Makes air tools last longer...protects your investment in pneumatic equipment
- Allows compressed air equipment to work at peak efficiency
- Eliminates the need to install and maintain point-of-use filters, separators or extractors
- Keeps sandblasters from clogging

Warranty Period
Parts and labor for two-(2) years from the date of shipment from the factory; heat exchangers are covered (parts only) for an additional three (3) years (total of five (5).

DATOS TÉCNICOS

  • Product Specification

    • Capacity (CFM) @ 100 PSI
      20 CFM @ 100 PSI
    • Max Pressure (PSI)
      227 PSIG
  • Overview & Technical Details

    • Air Dryer Style
      High Inlet Temperature
    • Max Ambient Temperature
      110 Degree F
    • Max Inlet Temperature
      180 Degree F
  • Additional Features

    • After Cooler
      Included
    • Air Filtration Included
      Included
  • Connection

    • Connection NPT
      3/4" NPT
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      17" Depth, 14" Width, 29" Height
    • Weight (lbs)
      79.000000
  • Power Requirements

    • Standard Voltages
      115/1/60
  • Warranty

    • Standard Warranty
      Factory Warranty
